Peel Ply PTFE 85GSM 120 /200/230/260c Nylon PA66 for Aerospace Autoclave

US$0.20-0.50 360 Square Meters (MOQ)

Basic Info.

Model NO.
PA66
Width
1.8m
Weight
85g
Type
Special Fabric
Technics
Woven
Pattern
Plain
Style
Plain
Knitted Type
Warp
Fiber Length
Long Fiber
Max Width
3m
Standard Width
1.8m
Temp.Resistant
180-260 Centigrade
Resin System
Epoxy, Polyester, Vinyl Ester
Heat Destory Tempetature
230 Centigrade
Color
White Fabric with Red Line
Breaking Strength
Weft 1370 /Warp 1110 (N/5cm)
Transport Package
Roll with PE Bag
Specification
A grade
Trademark
utek-dele
Origin
China
HS Code
39269090
Production Capacity
10000000 M2/Month

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
100.000kg

Product Description

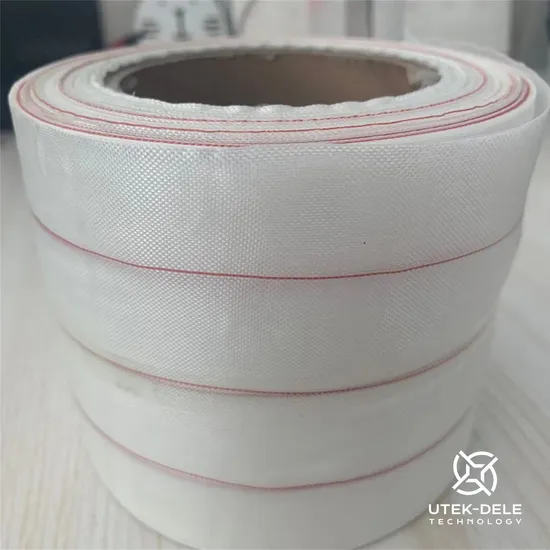

Product Description Peel-ply is a tightly woven disposable polyester or nylon cloth, that used in a number of composites manufacturing processes including conventional wet-layup, resin infusion, vacuum bagging and some prepreg applications.
It is through strict rinse and heat setting, surface clean without pollution, good resisitance to tear, stability under high temperature, it can easy to spray paint processing, with good mold release.

Temperature resistance 150~203°C No release agent coating on the surface, will not pollute the product; It has good mold release and obvious marking line,can prevent leakage and residue; Fabric texture is formed on the surface of the product after stripping, improve the shear force of structural bonding, make easy for secondary bonding and sanding Detailed Photos Product Parameters
Product Materials Weight(g/m2) Thickness Oil content Recommend TEMP ºC Roll width/Length(m)
UT-85-PET PET 85±5% 0.1~0.15 <0.3% 150 0.1-1.8 / 200
UT-95-PET PET 95±5% 0.12~0.15 <0.3% 150 0.1-1.8 / 200
UT-90-PA6 PA6 90±5% 0.1~0.15 <0.2% 180 0.1-1.8 / 200
UT-85-PA66 PA66 85±5% 0.1~0.15 <0.2% 204 0.1-1.8 / 200
UT-105-PA66 PA66 105±5% 0.12~0.18 <0.2% 204 0.1-1.8 / 200
Packaging & Shipping Packaging Information
The fabric is wound on a paper tube, packed by plastic film, warpped by bubble films.
The pallet and the goods are packed with packing tape, and then wrapped around the stretch film.
Storage Method
Stored in a cool and dry place. Make sure not directly touch the ground or wall to avoid moisture.Do not remove the original packaging when store.
Application Welcome to inquiry.
Give us a chance, and we' ll return you with satisfaction.
