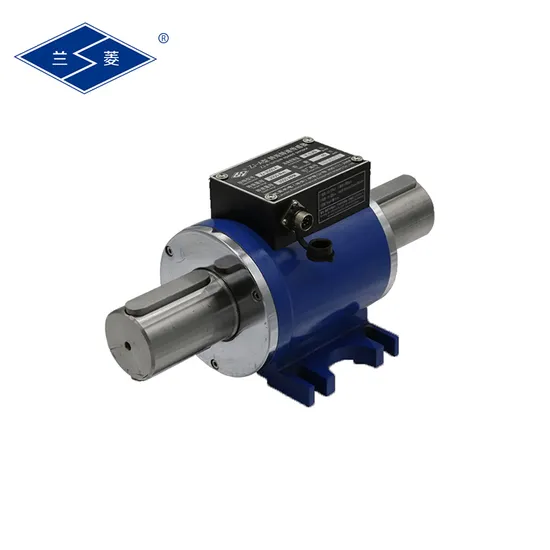

Zj-50A Torque Speed Sensor Rotary Torque Sensor Dynamic Torque Sensor Price Made in China

US$1,000.00-10,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZJ-50A Torque Speed Sensor
Type
Torque Speed Sensor
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Weight
4 Kg
Power Source
AC220V
Oil Cylinder Position
No Cylinder
Torque Range
50 N.M
Max Speed
6000 Rpm
Overall Dimension
114 X 188 X 78 mm
Transport Package
Carton Box
Specification
ZJ-50A
Trademark
Lanmec
Origin
China
HS Code
9031809090
Production Capacity
10000 Sets / Years

Product Description

Product Description
Torque speed sensor:

Model Range
N•m		 Max Speed
(r/min)		 Overall dimension Shaft couping size Base support size Weight(kg)
H L D d b(p7)Xn T L1 L2 L3 L4 L5 L6 H1 d1 h
ZJ-5A 5 6000 114 188 78 18 6X1 20.5 31 35 72 90 75 100 55 8 12 3.8
ZJ-10A 10 6000 114 188 78 18 6X1 20.5 31 35 72 90 75 100 55 8 12 3.8
ZJ-20A 20 6000 114 188 78 18 6X1 20.5 31 35 72 90 75 100 55 8 12 3.8
ZJ-30A 30 6000 114 188 78 18 6X1 20.5 31 35 72 90 75 100 55 8 12 3.8
ZJ-50A 50 6000 114 188 78 18 6X1 20.5 31 35 72 90 75 100 55 8 12 3.8
ZJ-100A 100 6000 114 188 78 18 6X1 20.5 31 35 72 90 75 100 55 8 12 3.8
ZJ-200A 200 5000 125 209 92 28 8X1 31 41 36.5 72 90 75 100 60 8 12 5.1
ZJ-500A 500 4000 135 238 96 38 10X2 22 55 37 72 90 75 100 65 8 12 6.5
ZJ-1000A 1000 3000 143 270 106 48 14X2 27.5 70 40.5 69 90 78 120 68 12 15 9
ZJ-2000A 2000 3000 143 270 106 48 14X2 27.5 70 40.5 69 90 78 120 68 12 15 9.5
ZJ-5000A 5000 2000 187 347 144 75 20X2 42 105 34 69 100 156 180 90 12 15 23
ZJ-10000A 10000 2000 214 389 158 98 28X2 55 118 36.5 80 110 170 200 110 14 15 35
ZJ-20KA 20K 1800 225 420 168 105 28X2 58.5 125 41 88 125 180 205 115 14 15 56
ZJ-30KA 30K 1500 258 420 206 125 32X2 69.5 125 41 88 125 200 230 136 14 15 56
ZJ-40KA 40K 1500 301 480 240 150 40X2 84 150 45 90 125 190 250 153 18 20 95
ZJ-50KA 50K 1500 301 480 240 150 40X2 84 150 45 90 125 190 250 153 18 20 95
ZJ-100KA 100K 1200 331 560 280 180 45X2 100 180 55 90 130 230 290 168 18 20 160
ZJ-150KA 150K 1000 420 900 350 235 56X2 129.5 129.5 50 180 240 250 290 220 22 25 420
ZJ-200KA 200K 800 446 900 380 255 56X2 139.5 139.5 48 180 240 250 300 240 22 25 480
ZJ-300KA 300K 800 480 900 416 295 70X2 161.5 161.5 48 180 240 268 310 250 22 25 580

ZJ torque speed sensor (dynamic) adopts strain gauge measurement technique.The electrical signal of elastic shaft under torsion can be measured by providing power for the strain gauge bridge. After amplified,and voltage/frequency conversion, the strain signal is converted into the frequency signal directly proportional to torsional strain.
Product features:
1. Torque measurement;energy and signal non-contact transmission; output signal digitized .2. High testing precision, high stability and anti-inter ference ability. 3.Repeating zero setting is not required continuous 4. Both static torque and dynamic torque can be measured. 5.an be used independently without secondary instrument, output signal can directly use by PLC or PC . 6.Can be customized according to customer requirements.
Main Function and Performance Index:
Torque indication error: <± 0.2 % F · S Sensitivity: 1±0.2 mv / V Nonlinear: ≤±0.2 % F·S Repeatability: ≤±0.2% F·S Lag: ≤0.2 % F·S Zero drift (24 hours) : ≤0.1 % F·S Output impedance: 1KΩ ±3Ω Insulation resistance: >500MΩ Static overload: 150 % Breaking load: 200 % Power supply voltage:DC±15V±5% ,DC 24V( optional) Speed output signal: 60-2000 pulse / turn(optional) Zero torque frequency output:10KHZ Positive torque full scale frequency output :15KHZ Reverse torque full scale frequency output :5KHZ Signal duty ratio: (50±10)% Power consumption of the sensor: 4W Temperature when use: -20 ~ 70ºC Relative humidity: ≤90%RH
