Basic Info.
Certification
GS, RoHS, CE, ISO9001
Applicable Material
Plastic
Name
Sports Shoes Making Machine
Type
Direct Injection Machine
Power Consumption
20-25kw
Shippin Terms
Fob Shenzhen
Transport Package
Standard Export Package
Specification
6.2*3.6*2.5 m
Origin
Dongguan City, China
Production Capacity
100 Sets/Month
Product Description
>> Description
Product:Suitable for various kinds of shoes such as canvas shoes and sport shoes.
Raw Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
>> Machine Features
1. All oil circuits are controlled proportion pressure to coordinate with computer digital feeding system.
2. Hydraulic compare with vertical straight locking device for perfect tightness with the least burr, to reduce manufacture cost.
3. Coordinated with electric and hydraulic structure and unique braking device to make rotary turn fast and set precisely.
4. Special design of mechanical butter to coordinate with hydraulic multi-control, it avoids the hitting between injection gate and mould, also keeps standard touching pressure to extend mold serving life.
>> Machine specifications
| Machine model | JL-258 |
| Mould-clamping Unit |
| Work station | | 12,16,20 |
| Shoe last trip | MM | 60 |
| Shoe last height | MM | 210-260 |
| Mould dimension | MM | 340*80*60 |
| Clamping mould style | | V |
| Injection Unit |
| Injector | SET | 1 |
| Screw diameter | MM | 70/75 |
| Screw L/D ratio | L/D | 20 |
| Max.injection volume | cm3 | 650-1000 |
| Injection pressure | mpa | 5.0 |
| Screw rotation speed | R.P.M | 0-200 |
| Electricity Consumption |
| Heating power of injector | KW | 9 |
| Hydraulic unit motor | KW | 15 |
| Total power | KW | 24 |
| Temperature control | Section | 4 |
| Power consumption per hour | Kw/h | 15-20 |
| Dimension and Weight | 20 Stations |
| Machine dimension | (L*W*H)MM | 6200*3600*2500 |
| Machine weight | KGS | 9000 |
| *Note:Above data only for reference. |

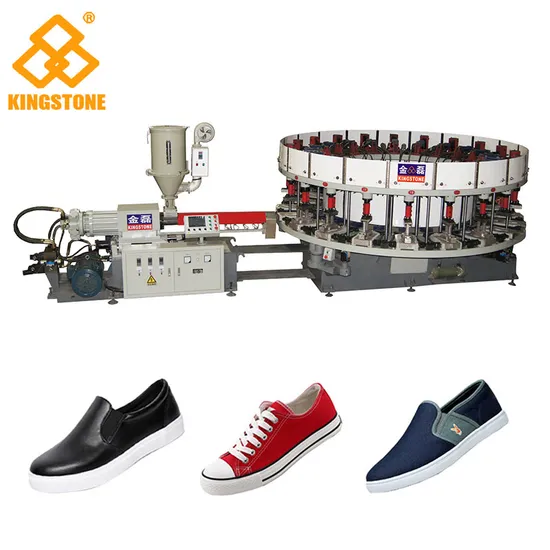

>> Machine Pictures
>> Machine Drawing
>> Finished Products
Package & Shipping
The machine need 40HQ container .
>>
