Qt10-15 Big Capacity Automatic Concrete Cement Hollow Interlocking Concrete Brick Machine

Product Description

Product Description

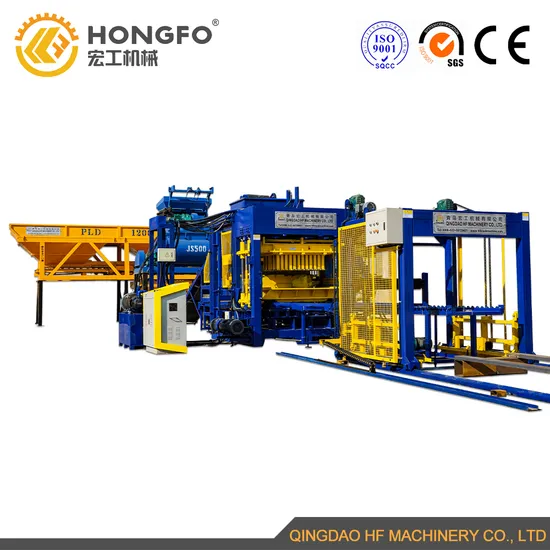

QT10-15 Automatic Block making machine
Company Website:chinablockmachine.en.made-in-china.com
1. QT10-15 automatic block making machine which is a special-purpose equipment for making building block making machine. The material of this machine can be flyash, slag, gangue or the others industrial waste, river sand, gravel, cement etc. Makes different sizes of hollow blocks, porous blocks, curbstone, pavement blocks, grass blocks, slope-protecting blocks, ring-tree blocks etc. If add color machine, it can make layering blocks.
2. QT10-15 automatic block making machine adopts gantry frame type structure, made by super super steel,strong and shock resistant,very reliable.The design adopts the driving type material storage mode with independent foundation to send the material when it is needed at chinablockmachine.en.made-in-china.com wave swing type of material feeding device,with good feeding effect. Cartridge type welding mold,adopts qualified manganese steel by carburizing and quenching.no transformation and no
damage after using 100000times.It can make the simple production line with PL1200 batching machine,JS500or JS750 mixer,8m conveyor belt and stacker.
3. This equipment is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient, easy-operated and easy-maintained. Block molding mainly by hydraulic, machinery as sideline, vibrate and press to finish molding blocks. The compressive strength of all blocks more than 21 MPa, compactness is high, impermeability and freeze resistance is better, and excellent capacity of sound insulation, heat insulation, insulation.external dimensions are precise.

SPECIFICATIONS FOR QT10-15 BLOCK MAKING MACHINE
Model	QT10-15
Rated pressure	21Mpa
Dimension	9350x2320x2950mm
Forming Cycle	15-20s
Vibration form	Platform vibration
Weight	11000kg
Working area	2000 sq.m
Pallet Size	1300x900mm

Block Sample
Company Profile
QINGDAO HF MACHINERY Co., Ltd is the professional manufacturer and exporter of technology block machines. We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia,Israel, Chile, etc.
We have more than 50 technicians to guarantee superior installations and service after-sales to help customer install the machine and undergo proper trainingabroad.
We adopt advanced vibration technology, durable hydraulic pressure system and system advanced Siemens PLC intelligent control system. By adopting the technology and control system above, our block machine has higher production efficiency and lower failure rate. The blocks produced by our machines have higher density, higher strength, more beautiful and accurate dimensions. It is our honor to serve some large block factories and companies of construction in Mexico, Belize, Honduras, El Salvador, Panama, Colombia, Ecuador, Peru, Bolivia, etc. We have a wealth of experience in the South American market.
We warmly welcome customers from all over the world who come to visit our factory and discuss long-term cooperation.

OUR SERVICE

1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation. Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one year's warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user's needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to us.
Packaging & Shipping
Our Customer
FAQ
If you interested in our block machine, please feel free to contact me.

---
