Kemapower SVC 3 Phase Automatic Voltage Stabilizers 50kVA Voltage Stabilizer 380V AC

Product Description

Three Phase Servo Motor Automatic Voltage Regular
SVC3 1.5-90K
KEY FEATURES Three phase Servo motor automatic Voltage Regular 1.5KVA-90KVA Input 3P+N+G=380V or 3P+G=220V Output 3P+N+G=380+-3% or 3P+G=220V±3% PF 0.8, Terminal Overload , short Circuit over-voltage, low voltage etc Voltage regulating speed 10V/S LED + Dial display,or LCD display Option TECHNICAL SPECIFICATIONS

Input Voltage Range	Default 3P+N+G= 260V-430V or 3P+G=150- 264; Option 3P+N+G= 160-430V
Output Voltage	Default 3P+N+G=380V or 3P+G=220V
Stabilization Accuracy	Default 3P+N+G=380V ±3 % or 3P+G= 220V±3%
Frequency	50Hz / 60Hz
Wave Form Distortion	No addictive wave form distortion
Efficiency	>90%
Debug Time	<1s (With the input voltage variation of 10%)
Over Voltage Protection	Default Phase Voltage 246V±4V or 130V ±4V
Ambient Temperature	from -10 to +40ºC
Temperature Rise	Lower than 60ºC
Overload Power Factor	0.8
Dielectric strength	1500V/min
Insulation resistance	2MΩ
Protection	overload , short Circuit over-voltage, low voltage etc.
Display	LED + Dial instrument display,or LCD display Option
Model	Capacity	Product Size (mm)	G.W (kg)	Packing Size (m)	Unit/CTN
SVC3-1.5K	1.5KVA/1.2KW	480*320*165	14	0.57*0.41*0.255	1
SVC3-3K	3KVA/2.4KW	480*320*165	17	0.57*0.41*0.255	1
SVC3-4.5K	4.5KVA/3.6KW	480*320*165	18	0.57*0.41*0.255	1
SVC3-6K	6KVA/4.8KW	305*275*670	30	0.375*0.345*0.745	1
SVC3-9K	9KVA/7.2KW	325*315*770	38	0.395*0.385*0.85	1
SVC3-15K	15KVA/9.6KW	425*370*830	90	0.5*0.45*0.91	1
SVC3-20K	20KVA/16KW	415*460*895	100	0.545*0.505*0.985	1
SVC3-30K	30KVA/24KW	415*460*895	108	0.545*0.505*0.985	1
SVC3-40K	40KVA/32KW	415*460*895	120	0.545*0.505*0.985	1
SVC3-50K	50KVA/40KW	450*550*1160	155	0.55*0.64*1.13	1
SVC3-60K	60KVA/48KW	450*550*1160	162	0.55*0.64*1.13	1
SVC3-75K	75KVA/60KW	620*510*1350	200	0.695*0.595*1.515	1
SVC3-90K	90KVA/72KW	620*510*1350	215	0.695*0.595*1.515	1

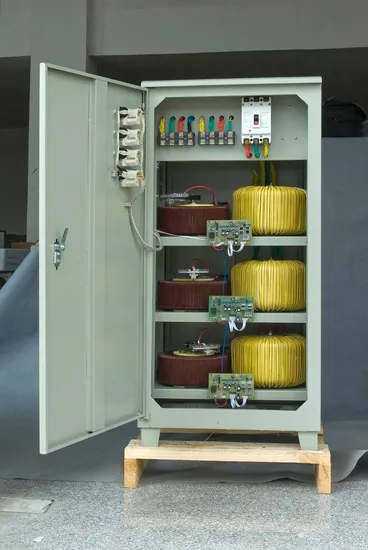

PRODUCT DISPLAY
Input voltage and output power

---
