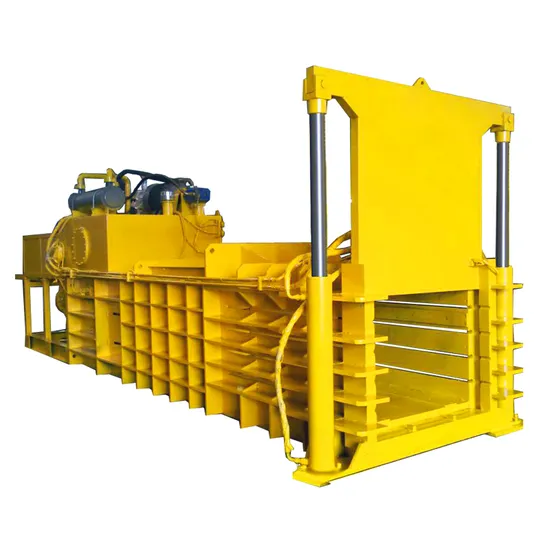

Horizontal Waste Paper Plastic Metal Scrap Baler

Product Description

Semi-automatic baler mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as horizontal structure, hydraulic transmission, electrical control. Usually the pressure force of this series is from 50 ton to 200ton, the efficiency is higher than the vertical structure. Also, we can produce the machine as manual binding or automatic binding according to the requirement.
Features
1.The integration operation of PLC, button and remote control save the labor
2. Equipped with independent emergency button,can stop at any time.
3.High strength design of framework ensures the stable running of the machine
4.Dispersible design of cutter improve the cutting efficiency and reduce the load effiectively.
5.The hydraulic cylinder control the size of bale ejector,stably and safely, and can also adjust the packing density freely.

Model	Capacity	Bale Weight	Bale Qty	Bale Size(L*W*H)
BYB-50T	0.5 to 1.2 Tons/hr	100 to 150 KGS	5 to 8 Bales/hr	(800-1500)*900*600
BYB-60T	1.2 to 1.6 Tons/hr	150 to 200 KGS	5 to 8 Bales/hr	(800-1500)*700*900
BYB-80T	1.2 to 1.6 Tons/hr	150 to 200 KGS	5 to 8 Bales/hr	(800-1500)*914*660
BYB-100T	1.0 to 2.0 Tons/hr	200 to 250 KGS	5 to 8 Bales/hr	(800-1500)*914*830
BYB-120T	2.0 to 4.8 Tons/hr	450 to 600 KGS	5 to 8 Bales/hr	(800-1500)*1100*830
BYB-150T	2.5 to 5.6 Tons/hr	550 to 700 KGS	5 to 8 Bales/hr	(800-1500)*1100*830
BYB-200T	3.0 to 6.0 Tons/hr	600 to 750 KGS	5 to 8 Bales/hr	(800-1500)*1100*830

Note: capacity is based on plastic materials. Bale size can be changed as per buyer's request.

---
