Product Details
Product Description
Product Description
Our Computer Integrated Manufacturing (CIM) introduces the basic concepts and procedures of CIM production as well as the main components and devices in a CIM cell. Using the CIM project with a fully simulated industrial CIM, students learn about all the aspects of a CIM production cycle, from customer order and inventory control, through automated manufacturing of materials into finished parts, to quality inspection and final delivery, Students set up and operate CIM cells
Our CIM systems are modular and flexible solutions for educating and training students in the principles and technologies of computer integrated manufacturing.
Computer Integrated Manufacturing (CIM) system has several key components: an automated storage and retrieval system (ASRS), at least one automated workstation such as CNC machining, a continuous-loop conveyor, a central management control station, a TCP/IP communication network, and CIM control software.
1. Product Overview:

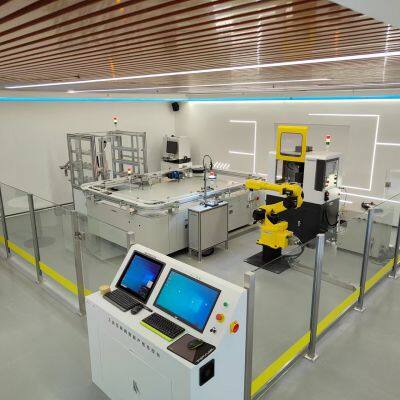

This set of equipment is a desktop small flexible manufacturing system, the main features are small footprint, safe operation, easy to use by teachers and students；It is mainly composed of an industrial 6-axis robot, a flexible CNC lathe, a flexible CNC milling machine, PLC workstation, raw material warehouse, finished product warehouse, central control console, etc,Realize automatic loading and unloading, processing and other unmanned work links,According to the instructions, the robot sends and fetches materials to the two machines(lathe and milling machine) respectively,The system can realize the programming of industrial robot loading and unloading workstation system, the integration of loading and unloading system, PLC system programming, fieldbus communication training, robot programming, NC programming, NC machining and other links. Students can easily master the loading and unloading of industrial 6-axis robot and the establishment of workstation system of CNC machine tools, which can meet the needs of students for industrial robot learning and operation, and realize seamless connection with the actual situation of the factory. The knowledge points involved are rich, comprehensive and systematic. Through the learning and training of the system, students can have a comprehensive understanding and application of the integrated application of intelligent and non artificial construction Experience.
2. Product Positioning:
It can be used as the automation major, mechanical and electrical integration specialty, robot specialty and enterprise engineer of colleges and secondary vocational colleges to carry out the training of robot, CNC processing, material in and out warehouse integration to establish industry 4.0 intelligent unmanned factory, and improve the comprehensive learning and training at the stage.
3. Product Function:
The system is comprehensive: it integrates industrial 6-DOF robot programming, CNC machining programming, sensors, PLC, communication, and organically combines the executive mechanism, control system, drive system and various professional disciplines；The robot is responsible for the loading and unloading of CNC machine tools; when one of the CNC lathe parts is finished, it will be taken out automatically and sent to the CNC milling machine to process the next process, and the robot will grab the processed parts to the finished product storage. After mastering the operation and programming of the system, students can also adjust the products processed by the system or complete the automatic assembly of the qualified products processed by the robot through programming.
>>
