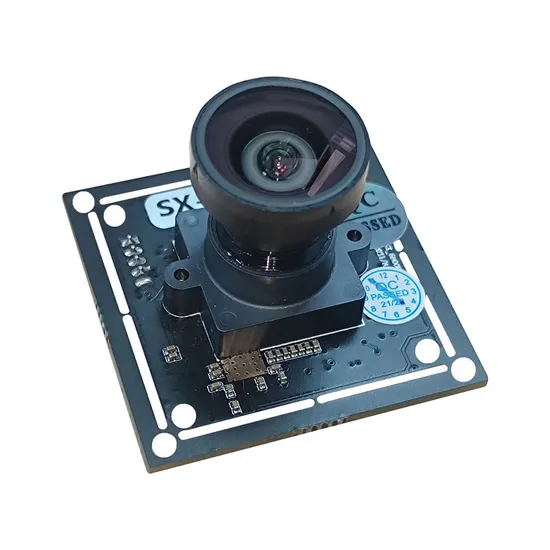

High Definition USB Camera Module with Wide Angle Fixed Focus Lens

Product Description

4K High Definition USB Camera Module with IMX415 Sensor and Wide Angle Fixed Focus Lens
With 8MP resolution, and an ultra wide angle field of view.
Supports mass operating systems, including Windows 8,10, mac OS 10.10 or above.
The camera also can widely work with PC, Mac, Macbook, Laptop, Desktop, Computers.
Compatible with most video chatting and recording software, like Skype, Zoom, OBS, Face Time, Facebook, YouTube and etc.
Features: -- USB2.0 High Speed Interface -- 8MP high resolution, suitable for document capture -- Advanced Sony image sensor -- Can match with different angle of Lens
Specifications:

Name	USB Camera Module
Product No.	SX-6800H
Resolution	4K (8.0Megapixels)
Image Sensor	1/2.8" CMOS
Max. Pixels	3840*2160
Pixel Size	1.45μm*1.45μm
Compression Format	MJPG/YUY2
Resolution & Frame Rate FOV	1920*1080 25fps[MJPG] 4fps[YUY2] H: 84°, V:54° 3840*2160 25fps[MJPG] 1fps[YUY2] H: 84°, V:54°
SN	>=39dB
Dynamic Range	>=72dB
Illumination	>=0.1LUX at F1.2
Interface	USB2.0 4-Pin 1.5mm
Power Consumption	Max. 1.3 W
Power Supply	USB 5V±5%
Lens	3.4mm
Scan Method	Progressive scan
Interface Speed	USB2.0/480Mb/s
Dimension of PCB	38*38mm / 32*32mm ±5%
Work Temperature	-10~60ºC
Storage Temperature&Humidity	-20~70ºC/20%~85%RH
Support System	WindowsXP/7/8/10//vista/Server/Linux(include UVC)/Android

---
