S2610V2-Pwr Ethernet Network Switch 10ports H3c Web Managed Gigabit Soho Switch

Product Description

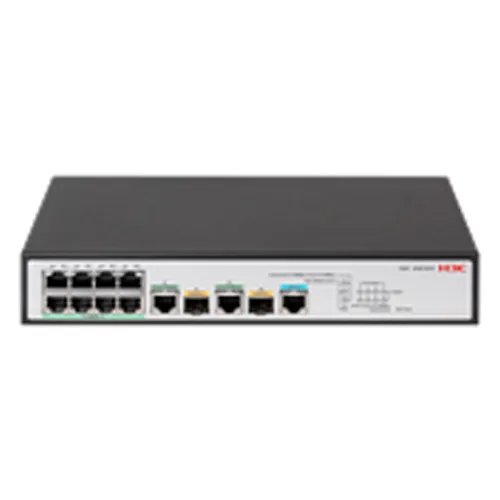

Model: NEW H3C S2610V2-PWR
(8*10/100 Base-TX Ethernet port 2*100/1000 Base-X SFP optical port (Combo))
(Support PoE+, The maximum output of the whole machine: 65W)
Product Description Product Description H3C S2600V2 series Ethernet switches are a new generation of 100M access fully managed switch products launched by H3C Technology Co., Ltd. (hereinafter referred to as H3C) for the access layer. On the basis of satisfying high-performance access, it provides complete security Access strategy and stronger network management and maintenance ease of use; it can be widely used in network construction scenarios in the government, small and medium-sized enterprises, schools, hotels and other industries.
Detailed Photos

Product Parameters

Attributes	S2610V2	S2610V2-PWR	S2626V2	S2626V2-EI	S2626V2-PWR	S2626V2-HPWR	S2626V2-HPWR-EI	S2652V2
exchange capacity	260Gbps
packet forwarding rate	24Mpps
management port	1 console port
fixed port	8*10/100 Base-TX Ethernet port 2*100/1000 Base-X SFP optical port (Combo)		24*10/100 Base-TX Ethernet port 2*100/1000 Base-X SFP optical port (Combo)					48*10/100 Base-TX Ethernet port 2*100/1000 Base-X SFP optical port (Combo)
Electrical port properties	Support half-duplex, full-duplex, auto-negotiation working mode MDI/MDI-X support
Ethernet function	LLDP support Static MAC configuration Support the limit of the number of MAC address learning (MAC address depth supports up to 16K) Supports port mirroring and stream mirroring functions Support port aggregation (maximum 8 ports for aggregation group ports) Support port isolation Support STP/RSTP/MSTP Support IEEE 802.3ad (dynamic link aggregation), static port aggregation
VLAN	Support 802.1Q (maximum 4K VLANs) Protocol-based VLAN support Supports VLANs based on IP subnets Supports MAC-based VLANs Support GUEST VLAN Support QinQ, flexible QinQ
IP routing	Support static routing, RIP
DHCP	Support DHCP Relay Support DHCP Client Support DHCP Snooping Support DHCP Snooping Option82
multicast	Support IGMP V1/V2/V3 Snooping
QoS	Support Diff-Serv QoS Support queue scheduling mechanisms such as WRR/HQ-WRR Support 802.1p, DSCP priority mapping Supports bidirectional rate limiting on ports
ACL	· Supports Layer 2, Layer 3, and Layer 4 ACLs Support IPv4, IPv6 ACL Support VLAN ACL
IPv6	Support IPv6 static routing, dual protocol stack Support DHCPv6 Client, DHCPv6 Snooping Support ND, PMTU Support IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution
reliability	Support hot patch function, online patch upgrade
safety	Support user hierarchical management and password protection Support SSHv2, provide a secure encrypted channel for user login Support SSL to ensure data transmission security Support FTP login and password mechanism with controllable IP address Support to prevent ARP, unknown multicast packets, broadcast packets, unknown unicast packets, TTL=1 packets, protocol packets and other attack functions Support anti-Dos attack Support MAC address restriction Support IP+MAC+PORT+VLAN binding function Support IEEE 802.1x Support SAVI source address validity verification Support Radius, support HWTACACS Support secure network management SNMPv3 Support broadcast message suppression Support CPU anti-attack
System Management	Support Console/AUX Modem/Telnet/SSH2.0 command line configuration Support FTP, TFTP, Xmodem, SFTP file upload and download management Support SNMP V1/V2c/V3 Support NTP clock Support system work log Support cluster management
PoE+ power supply	not support	Support PoE+ The maximum output of the whole machine: 65W	not support		Support PoE+ The maximum output of the whole machine: 190W	Support PoE+ The maximum output of the whole machine: AC:385W DC:740W		not support
ambient temperature	Operating ambient temperature: 0ºC~40ºC Storage environment temperature: -40ºC~70ºC
environment humidity	Operating environment humidity: 5% to 95% (non-condensing) Storage environment humidity: 5% to 95% (non-condensing)
Environmental friendly	China RoHs,,EEE
device maximum power	≤ 8W	≤ 90W	≤ 12W		≤ 220W	AC: ≤470W DC: ≤810W		≤ 22W
Weight (full configuration)	≤ 1kg	≤ 2.1kg	≤ 2.2kg		≤ 2.2kg	≤ 4kg		≤ 2.3kg
Input voltage	AC:100V~240V AC					AC:100V~240V AC,50/60Hz;DC:54V~57V		AC:100V~240V AC
Dimensions (length × width × height) (unit: mm)	266×162×44	330×230×44	440×173×44		440×238×44			440×173×44

Solutions we can offer We focus on the IDC data center field, have professional enterprise-level products, and provide complete planning and design solutions.
Main Application Scenarios:



Packaging & Shipping

Delivery time : 15-20 working days after payment receipt confirmed (based on actual quantity).

Original packaging to ensure product quality and safety.

Professional goods shipping forwarder.

After Sales Service

We guarantee that all products are original and authentic. All support after-sales inspection. Regarding xFusion server, we can provide remote technical services and troubleshooting. In addition to new retail products. Others have used NEW BULK. We provide a complete test report. Please rest assured to buy. The stock is huge. Many products are not released in time. If you need more product quotations. You can email to contact us at any time.

FAQ Q1: How can I believe that your product is of good quality?
A1: We guarantee that all products are original products.We provide a complete test report.
Q2: When can I get a quote?
A2: We will usually quote you within 24 hours after receiving your inquiry. If you really want to get a quotation and more other questions, you can contact us via trademessage or email.
Q3: Why choose you?
Q3: As an Audited Supplier,we have a good reputation on our customers,because of the good quality,suitable price and good service.
Q4: What is your payment?
A4: T/T wire bank transfer.

---
