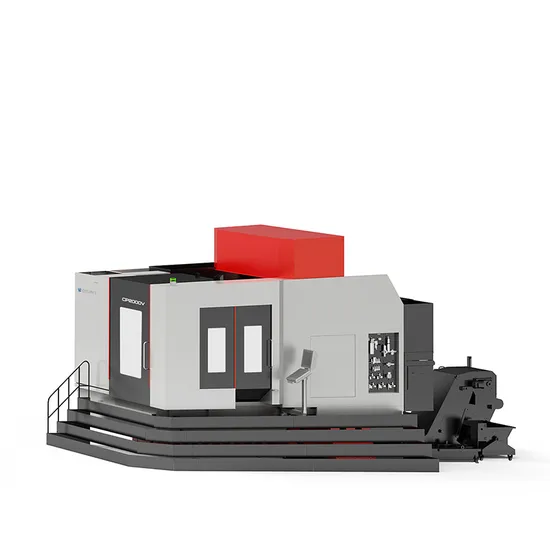

Advanced 5 Axis Horizontal CNC Milling Machine Cp2000 with Intelligent Warning System

Product Description

Product Description
High-speed, high-performance and precision horizontal 5-axis machining center CP Series has the characteristics of high rigidity, high precision and high efficiency machining. The one-piece casting base is used to ensure the high rigidity of the machine; the whole machine has passed the finite element analysis to ensure that the machine does not vibrate under high-speed motion, and guarantees the best long-term operation stability of the whole machine.
By adopting high-end technologies such as high-speed spindle technology, high-speed feed technology, high-speed tool change technology, and high-speed CNC system technology, the processing time is greatly shortened, the processing efficiency is improved, and various production needs are met. The three-axis rapid displacement is 60M/min, and the high-speed and high-torque electric spindle reduces the acceleration and deceleration time of the spindle. These indicators greatly shorten the non-processing time and improve the processing efficiency; the screw/bearing seat/spindle/DD swing head adopts a temperature control system to ensure The equipment has excellent thermal balance, which greatly improves the accuracy and stability of the equipment.
Adopting Siemens one system, 19-inch super large LCD display, dynamic graphic display of tool trajectory, intelligent warning display, self-diagnosis and other functions make the use and maintenance of the machine more convenient and fast; the high-speed bus communication method greatly improves the data processing of the CNC system The ability and control performance facilitate the fast and efficient transmission and online processing of large-capacity programs.

Product Parameters

Item		Unit	CP2000V
Travel	X/Y/Z axis travel	mm	1700x1750x1700
	B-axis travel		-30°-160
	C-axis travel		0-360°
	Distance from spindle to worktable (B-axis 90 degree horizontal type)	mm	-43-1657
	Distance from spindle to worktable (B-axis 0 degree vertical)	mm	200-1900
	Distance from spindle to center of worktable (B-axis 90 degree horizontal type)	mm	-57-1643
	Distance from spindle to center of worktable (B axis 0 degree vertical)	mm	-300-1400
	Max. processing range	mm	φ1700*1900
Three-axis feed	X/Y/Z axis rapid displacement	m/min	60/90/90
	Cutting feed rate	mm/min	0-24000
Rotary table (C axis)	Number of worktables
	Diameter	mm	800*800
	Allowable load	kg	1500
	Max. rotation speed	rmp	60
	Positioning/repetition accuracy	arc.sec	8/4
B axis	Max. rotation speed	rmp	60
	Positioning/repetition accuracy	arc.sec	8/4
Spindle	Spindle specifications (installation diameter/transmission mode)	mm	190/built-in
	Spindle taper hole	mm	A63
	Spindle Max. speed	r/min	18000
	Spindle motor power (continuous/S640%)	kW	30/35
	Spindle motor torque (continuous/S640%)	N.m	70/85
Turret	Tool magazine capacity		50T
	Tool exchange time (T-T)	S	7
	Max. tool diameter (full tool/empty tool)	mm	80/150
	Max. tool length	Mm	450
	Max. tool weight	kg	8
Guide	X-axis guide rail (size/number of sliders)	mm	55/3
	Y-axis guide rail (size/number of sliders)	mm	45/3
	Z-axis guide rail (size/number of sliders)	mm	55/2
Three-axis transmission	X-axis screw	N	63×25
	Y-axis screw	N	50×32
	Z-axis screw	N	50*32*2
Three-axis accuracy	Positioning accuracy	mm	0.005/300
	Repeatability	mm	0.003/300
Lubrication system	Lubrication unit capacity	L	0.7
	Lubrication type		Grease lubrication
Others	Air demand	kg/cm²	≥6
	Air flow	mm³/min	≥0.5
	Machine weight	KG	42
	Size	MM	5451*9408*4688

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment
Q6:What's the OMQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.

---
