Hzs90 Ready Mixed Concrete Batching Station

Product Description

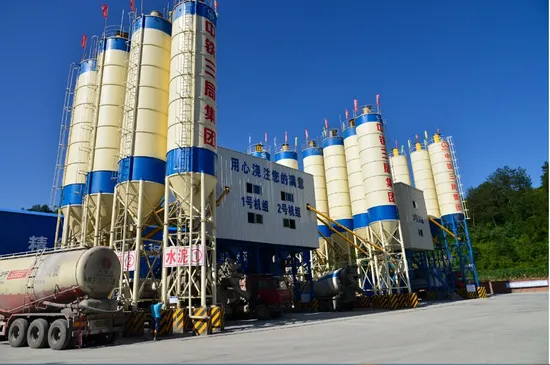

HZS90 Stationary Concrete Batching Plant
Product Description
Our HZS series ready mixed concrete mixing plant is forced type high efficiency concrete production equipment with following features:
1.Reliable mixing quality, high production efficiency, stable and long lifespan.
2.Advanced technology, strict production technique, high safety .
3.Digital weighing, high weighing accuracy, advanced centralized control system, zero repair
4.Integrated design, flexible layout, space saving, environmental protection.
5.All motors, speed reducers, sensors and other components are of China famous brand.
Our ready mixed concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, municipal projects,docks, airport, water projects, hydropower station,etc. They can also be used in precast concrete unit factories and used as commercial concrete batching plant to sell high quality concrete to different buyers.
Technical Parameters

Model		HZS60	HZS90	HZS120	HZS180	HZS240
Mixer	Productivity(m³/h)	60	90	120	180	240
	Type	JS1000	JS1500	JS2000	JS3000	JS4000
	Power(kW)	2×22	2×30	2×37	2×55	2×75
	Output(m³)	1	1.5	2	3	4
	Aggregate Diameter (mm)	≤80	≤100	≤120	≤150	≤150
Batching Hopper	Hopper Volume(m³)	3x13	4x13	4x15	4x20	4x20
	Hopper Quantity	3	4	4	4	4
Belt Conveyor Capacity(t/h)		≈380	≈380	≈480	≈650	≈960
Weighing Scope and Accuracy	Aggregate(kg)	4×1500±2%	4×2000±2%	4×2200±2%	4×3600±2%	4×4500±2%
	Cement(kg)	600±1%	900±1%	1200±1%	1800±1%	2400±1%
	Fly-ash (kg)	200±1%	300±1%	400±1%	600±1%	800±1%
	Water (kg)	250±1%	400±1%	500±1%	800±1%	1000±1%
	Admixture(kg)	20±1%	30±1%	30±1%	50±1%	80±1%
Total Power(kw)		82	108	127	178	220
Discharge Height(m)		≥3.8	≥3.8	≥3.8	≥4	≥4
Note:1.The total power excludes the power of screw conveyor; 2.The quantity and volume of hopper can be designed as required; 3.All above specifications are subject to final products

Main Characteristics
Packaging & Shipping

Model	HZS60	HZS90	HZS120	HZS180	HZS240	50T Silo	100T Silo	200T Silo
Container	4*40HQ	4*40HQ	5*40HQ	5*40HQ+ 1*40 OT	6*40HQ+ 1*40 OT	2sets in 1*40HQ	3 sets in 2*40HQ	1 set in 1*40HQ

---
