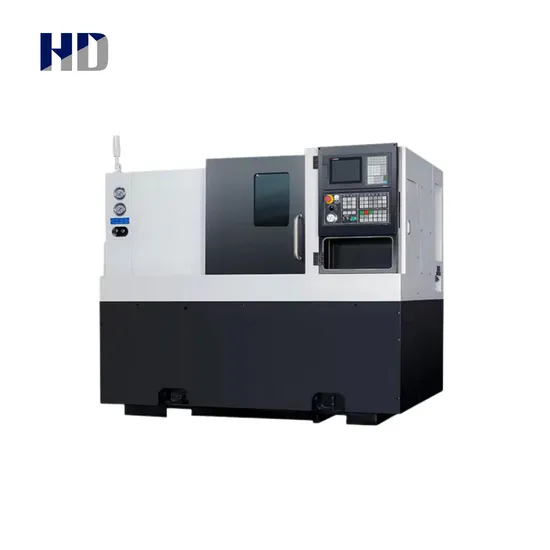

Sah4030t High Precision CNC Slant Bed Lathe Machine CNC Lathe

Product Description

Lathe Introduction
This is suitable for the short axis and the disk type parts process. Machines with pleasing appearance, reasonable structure design, convenient operation, whole casting molding machine tool for 45 ° , stable structure, good rigidity, Z, X adopt Taiwan HIWIN ball linear guide, high rigidity, high precision, the characteristics of spindle unit adopts the factory research and development of servo electrical axis, with high speed and high torque at low speed, the characteristics of stable performance,X travel is big, Can install more gang type tool, power heads or turret to realize complex turning and milling.

Specification Parameter

Specification	Unit	SAH4030	SAH4030T	SAH4042	SAH4050
The tilt angle		45°	45°	45°	45°
Swing over bed diameter	mm	400	430	400	400
Max. swing over slide	mm	120	260	120	220
Rail width	mm	286	344	403	363
Z axis max. travel	mm	400	200	420	500
X axis max. travel	mm	350	400	460	220
Spindle end		A2-5	A2-5	A2-5	A2-6
Taper of spindle hole		Morse 6	Morse 6	45	Morse 6
Spindle through hole dia.	mm	56	56	49	62
Spindle speed	r/min	100-5000	100-3000	100-5000	100-4500
The tailstock		No	Steel clad rail tailstock	No	Hydraulic pressure
Tool post		Gang type		Gang type	8 station servo turret
Servo main motor	kw	5.5	5.5	5.5	7.5
Dimension	mm	2080*1540*1515	1830*1340*1480	2140*1600*1680	2560*1660*1800
Weight	kg	1500	2300	1800	2000

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.

Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.

Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.

Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.

Exhibition Photos

Certificate
Packing&Shipping
FAQ

---
