Product Details
Product Description
Product Description
Anti-vibration hardware devices, hydraulic tools, special instruments and meters, pressure regulators, hydraulic hammers, nitrogen gauges, nitrogen filling gauges
Basic Parameters

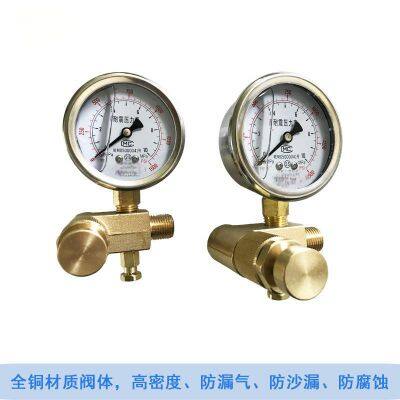

Name: Hydraulic hammer nitrogen gauge
Material: All-copper / The gauge head is made of stainless steel
Model: MY-R6
Net weight: 0.7KG
Features: The main purpose of the hydraulic hammer nitrogen gauge is to measure and fill nitrogen. The main function of nitrogen is that when the accumulator is filled with nitrogen inside, the energy stored by the hydraulic hammer during the previous strike and the energy of the piston recoil are released simultaneously during the second strike, thus increasing the striking ability.
Input pressure 10 MPA = 100 kg; Output pressure 0.15 MPA = 1.5 kg
Technical Parameters
Name: Nitrogen pressure reducing valve
Model (MAP): MY-R6
Output pressure (MAP): 0.15
Inlet connection thread: M16 x 1.5
Outlet connection thread: M10 x 1
Here are some synonyms for the nitrogen pressure reducing valve:
- **Nitrogen pressure regulator**: It has basically the same meaning as the pressure reducing valve. It refers to a device used to reduce the high pressure of nitrogen to an appropriate pressure. It is widely used in industrial, laboratory and other scenarios to ensure that nitrogen can be supplied at a stable and safe pressure in different applications.
- **Nitrogen pressure adjusting valve**: It emphasizes the function of adjusting the nitrogen pressure. By adjusting the opening degree of the valve and other means, the nitrogen pressure is adjusted to the required working pressure range to meet the specific requirements of various processes and equipment for nitrogen pressure.
- **Nitrogen pressure valve**: It is a relatively concise term and is also used to represent the valve device for controlling and adjusting the nitrogen pressure. It may be used in some specific industries or technical exchanges.
- **Nitrogen pressure reducing and adjusting valve**: It highlights that the device has both the pressure reducing function and the ability to adjust and control the pressure after pressure reduction, making it more accurately meet the actual usage requirements. It is often used in occasions where higher precision of nitrogen pressure is required.
>>
