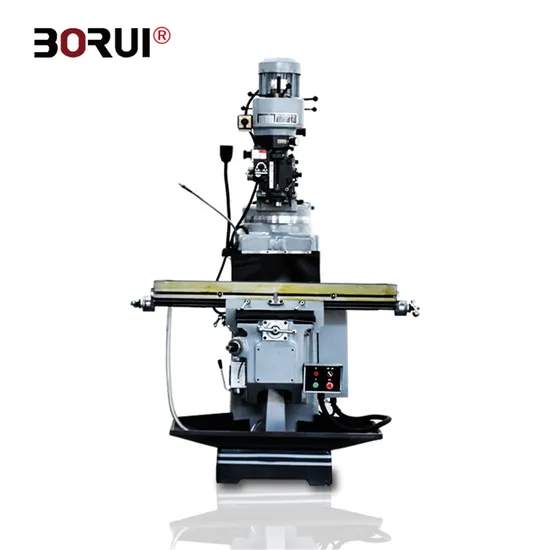

Universal Rocker Vertical Turret Milling Machine (X6333 X6330 X6325D)

Product Description

Radial Milling Turret Manual Milling Machine X6330 x6330a

Product Description
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
The Main Specification:

SPECIFICATIONS OF UNIVERSAL TURRET MILLING MACHINE X6330
Item	Unit	X6330	X6330A
Table size	mm	305x1370(12"x54")/ 305x1500(12"x58")	305x1370(12"x54")/ 305x1500(12"x58")
Longitudinal travel	mm	870/ 1000	870/ 1000
Cross travel	mm	360	360
Vertical travel	mm	380	380
T-slot		3x16	3x16
Distance from spindle nose to table	mm	0-350	0-350
Ram Travel	mm	500	500
Spindle taper		ISO40	ISO40
Spindle travel	mm	127	127
Spindle speed	Rpm	Standard: 16 steps 50HZ65-4540rpm, 60HZ:80-5440rpm Optional: Variable 60-3600rpm
Spindle feed		3-steps: 0.04(0.0015)/0.08(0.003)/0.15(0.006")mm/rev
Main motor	kw	3.75kw/5hp	3.75kw/5hp
Head Swivel (Right-Left)		90°	90°
Head Swivel (Front-Back)		45°	--
Single milers package	mm	1566x1650x2080	1566x1650x2080
Two milers package	mm	1720x1800x2175	1720x1800x2175
Weight	kg	1600	1650

Standard Accessories:
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Optional Accessories: Power feed
3-axis Digital Reading
Machine Vise
Milling Chuck
Variable milling head
Air drawbar
Dividing Head
Rotary TablKits
Turret milling machine
The main feature :
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.
6. The working table and guide rail are heating treated and precision grinding.
7. DRO and dividing head are for option.
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
