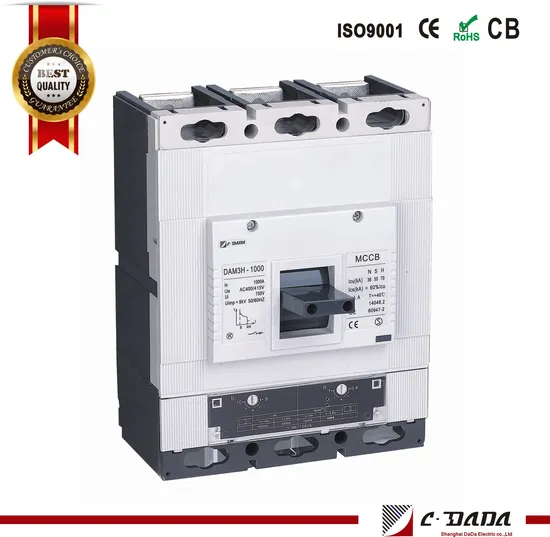

Dam3-1000 800A 1000A 3p MCCB Moulded Case Circuit Breaker Electronic Tama Adjustable CB Approved Factory Price

Product Description

Overview
The rated current of DAM3-1000 molded case circuit breaker can up to 1000A, it's generally used in the power distribution circuit to distribute power and protect circuit and power equipment from overloaded, short circuit, under voltage failure damage, in which alternating current 50-60Hz, rated direct-current 1000A.
Compared to the DAM1 series, the DAM3 series are designed for smaller volume, higher breaking capacity, offering better energy savings.
Electrical parameters of DAM3-1000 molded case circuit breaker

Rated current of frame size Inm [A]		1000
Rated current[A]		630 800 1000
Number of poles		3 / 4
Rated operating voltage	(AC)50-60HZ [V]	400/690
	DC[V]	250/1000
Rated impulse withstand voltage Uimp[KV]		8
Rated insulation voltage Ui [V]		750
Test voltage at industrial frequency for 1 min [V]		3000
Rated ultimate short-circuit breaking capacity Icu [KA]		N	S	H
(AC)50-60HZ 220/230V [KA]		55	80	105
(AC)50-60HZ 400/415V [KA]		36	55	70
(AC)50-60HZ 690V [KA]		15	20	25
(DC)250V-2 Poles in series		35	50	65
(DC)500V-2 Poles in series		18	22	30
(DC)750V-4 Poles in series		30	42	55
(DC)1000V-4 Poles in series		25	35	45
Rated service short-circuit breaking capacity, Ics [KA]
(AC)50-60HZ 220/230V [%Icu]		60%	60%	60%
(AC)50-60HZ 400/415V [%Icu]		60%	60%	60%
(AC)50-60HZ 690V [%Icu]		60%	60%	60%
Category of utilisation(EN 60947-2)		A
Isolation condition		Bitmap
Reference standard		IEC/EN 60947-2/GB 14048.2
Interchangeability		Bitmap
Versions	Fixed	Bitmap
	Plug-in	Bitmap
	Draw-out	Bitmap

Physical parameters of DAM3-1000 molded case circuit breaker

Endurance	Total cycles	5000
	Electrical endurance	1000
	Mechanical endurance	4000
Basic dimensjons-fixed version	3/4 Poies W[mm]	210/280
	3/4 Poies H[mm]	108.5
	H1[mm]	167
	3/4 Poies L[mm]	268

Introduction
The DAM3-1000 molded case circuit breaker automatically cuts off the current when the current exceeds the release setting. The molded case refers to the plastic insulator used as the frame of the device to insulate the conductor and the metal grounding component.

---
