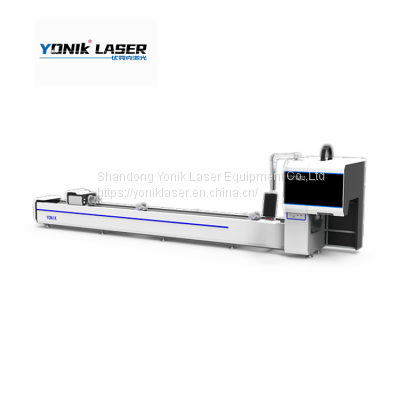

| Mode | YONIK-6016E | YONIK-6022E | YONIK-6035E |
| Profile Cutting Sizes | Length≤6500mm, Φ15mm≤round pipe diameter≤Φ160mm, 15mm≤Rectangular and square tube diagonals≤ 160mm | Length≤6500mm, Φ15mm≤round pipe diameter≤Φ220mm, 15mm≤Rectangular and square tube diagonals≤ 220mm | Length≤6500mm, Φ15mm≤round pipe diameter≤Φ350mm, 15mm≤Rectangular and square tube diagonals≤ 350mm |
| Single Pipe Weight | ≤160kgs | ≤240kg | ≤480kg |
| X Axis Travel | 240mm | 240mm | 400mm |
| Z Axis Travel | 180mm | 180mm | 300mm |
| Tail Waste | 90mm | 100mm | 150mm |
| X/Y/Z Axis Positioning Accuracy | ±0.05mm/m | ||
| X/Y/Z Axis Repositioning Accuracy | ±0.03mm/m | ||
| Maximum Acceleration of Three-chuck Walking | 1G | ||
| Maximum Speed of Three Chucks | 85m/min | ||
| Maximum Rotating Speed of Three Chucks | 100r/min | ||
| Other machine lengths and clamping pipe diameters can be customized, optional automatic feeding | |||
