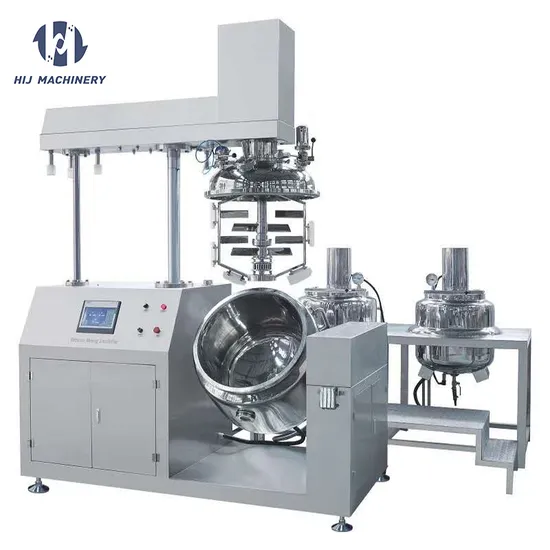

400L Vacuum Emulsifier Emulsifying Machine Mixing Equipment

Product Description

Product Description
400L Vacuum Mixing Emulsifier Features The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard. All pipelines and parameter are controlled automatically. And the electric appliance which are imported from foreign country ,like Siemens and so on. Emulsifying tank is with CIP cleaning system, it make the cleaning to be easy and effective. Emulsifying tank adopts tertiary agitating system, and during the emulsification ,the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing ,but also can avoid the unnecessary pollution. The homogenizer adopts the most advanced technology, it can get a ideal emulsifying effect. The speed of high emulsification is 0-3500r/min, and the speed of low mixing is 0-65r/min. Performance and Characteristics Purpose: This equipment is suitable for emulsifying cream or cosmetic product in pharmaceutical , cosmetics, foodstuff and chemical industry. Summarize: The TRZRJ Series Vacuum emulsifier has done the improvement bases on the technology which imported from German and it is especially useful in cosmetics and ointment product Industry. This equipment is mainly consist of emulsified tank , tank to storage oil based material, tank to storage water based material, vacuum system, hydraulic system, and electric controller. This equipment has following features: easy operation, compact structure, stable performance, good homogenization effect, high production benefit, convenient cleaning and maintenance , high automatic control . Product Parameters

Technical Parameters 400L
Main Mixing Tank	Total Volume:460L, Working Volume: 400L
	Inner layer 6mm/S316, jacket 4mm/S304, insulation 2mm/S304
	Pressure:-0.09-0.1Mpa in pot, <0.1Mpa in Jacket
	Temperature:≤105ºC, Heating power:4*6=24Kw
	Low speed mixer:0-60 rpm, Power:2.5kw
	High speedy mixer: 0-3500rpm, 5.5kw
Oil and water Tank	Oil pot volume:200L, Water pot volume: 280L
	Inner layer 4mm/S316, jacket 3mm/S304, insulation 3mm/S304
	Working Pressure: 0.1Mpa
	Temperature: ≤105ºC Heating power:Oil pot:18Kw, Water pot: 15Kw
	Agitator: Turbine, Power: 1.5kw, speed:960rpm
Vacuum Pump	Model: 2BV2070, Power: 2.35Kw
Hydraulic lifting and turning system	1.5Kw

Detailed Photos
Sample Display
Certifications
Packaging & Shipping
Company Profile
WENZHOU TRUSTAR MACHINERY TECHNOLOGY CO.,LTD is a professional pharmaceutical/food/comestic packaging machinery manufacturer and supplier, our product included pharmaceutical machinery series\comestic field, and foodstuff packaging machinery series and cartoning box packaging machine series. We strive in this field more than ten years. We supply good quality machines for our domestic and abroad customers, and supply timely and thoughtful service, and supply complete validation documents, and we also can supply total solution for you in pharmaceutical field \foodstuff packaging field and comestic fiedl. You are always welcome to cooperate with us!

---
