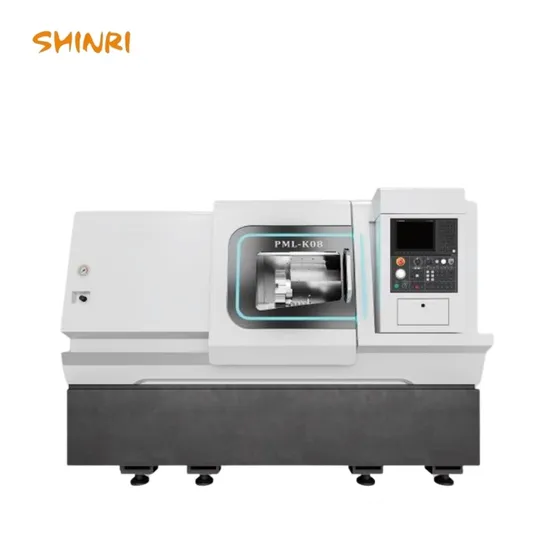

K08 Linear Guide CNC Slant Bed Lathe with Servo Turret Machine Tool

Product Description

Product Description
1. The machine tool castings are made of HT300. Advanced finite element analysis technology is adopted in the design, with reasonable structure and excellent layout. The casting is treated by second arylamination sure the long-term stability of machining. Roller linear guides are used in X and Z directions. The two rails have a large span, good stability, strong rigidity and good machining accuracy.
2. Adopt precision motorized spindles and SK/F bearing, with high precision, high rigidity, high rotation speed and durability. The machine tool is equipped with a 12-station servo turret. Bidirectional positioning, short tool changing time and high precision.
3. 2-axis screw is precision imported balls crew, with pre-stretching process, small thermal deformation and high transmission accuracy.
4. The screw support adopts SK/F bearing, with high-precision lock nut, to further improve the machining accuracy of the machine tool. The machine tool is designed in two ways: side chip removal and back chip removal, which can be selected by users.
Product Parameters

Item	Specification	Unit	K08
Machining capacity	Max. swing over bed	mm	Φ620
	Max. processing diameter of disc parts	mm	Φ420
	Max. turning length	mm	550
Travel	Max. travel X axis	mm	240
	Max. travel Z axis	mm	580
	Max. travel tailstock	mm	600
Spindle	Max. spindle speed	r/min	4000/3500
	Spindle nose		A2-6/A2-8
	Spindle hole diameter	mm	Φ66/Φ85.5
	Spindle bar diameter	mm	Φ50/Φ75
Feed rate	Rapia travel speed(X/Z/Tailstock)	m/min	20
Turret	Turret type		Servo Turret
	Tool stations	Tools	12
	OD shank size	mm	25×25
Overall dimension	L×W×H	mm	2750×1850×1850
Machine weight	Net weight	Kg	4200

Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring milling/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.
