Basic Info.
Automatic Grade
Automatic
Product Name
Hose Crimping Machine
Core Components
Motor, Dies, Quick Change Tool
Transport Package
Wooden Case
Specification
650*470*620mm
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
700.00cm * 450.00cm * 1300.00cm
Package Gross Weight
300.000kg
Product Description
Product Description
| SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE |
| Production name | hose crimping machine | Machine model | JYC-P32 |
| Machine type | hydraulic crimping tool | Application | crimping hose |
| Crimping range | 6-51mm(1/4--2 inch) | System pressure | 31.5Mpa |
| Crimping force | 3200kN | Operation mode | electrical |
| Dies set | 13 sets | Die length | 75mm |
| Dimension | 650*470*620mm | Weight | 290KG |
| Voltage | 220V/380V | Power | 3KW/4KW |
| Rated Flow | 10ml/r | Prodection Class | IP54 |
Detailed Photos
Front housing cover,cylinder and piston rod use material with CR,improve the oil cylinder and piston rod fatigue resistance.High quality
Reliable
durable
High performance to price ratio
ProfessionalIt will drive parts in the need to lubricate the parts and components of the output of the isolation,not to allow the leakage of lubricating oil.

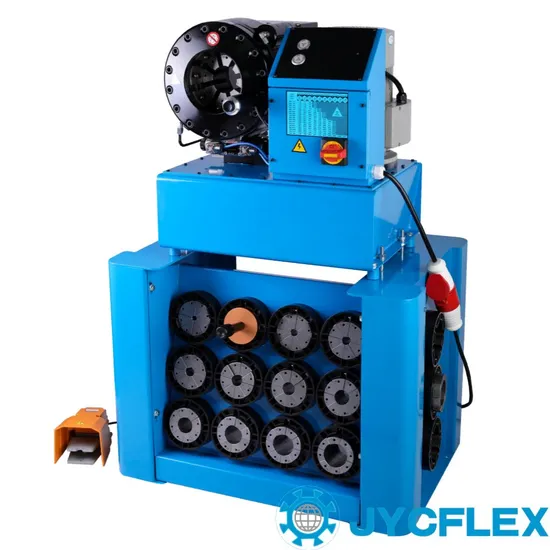

Hydraulic hose crimping machine Application
E51 hose crimping machine is ideal for crimping 51mm 4spiral hose.
Digital touch screen operation panel, simple operation and high accuracy.
With large working stroke, even elbow fitting can be crimped.Finn power style hose crimper.
All parts are imported from famous brand,durable operating performance.
With quick change tool, that will definately release your hands and imporve your working effieiceny.
With dies rack, dies could be kept and picked up or equipped very quickly.Company Profile
-Our factory has 20 years of production experience and 8 years experience of export.
-In the long term foreign trade business practice,we have a good business reputation,smooth public relations,experienced personnel and rich information channels.
Production Show
Certifications
CE certificate .Verified by world-leading inspection company TUV Rheinland.
Customers and Reviews
Packaging & Shipping
FAQ
Q1 : Are you factory ?A1: Yes, We are factory direct sales, can also provide CE certificate.
Q2:Do you have the machine in stock?A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.
Q3:Could you customize the voltage?A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.
Q4: How about the warranty?A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not work wrong; If your machine cann''t work,please contact us,we will help you fix it or send you some spares.Q5 : Could you customize dies molds?A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize the dies pattern or dies number regarding your requirement.Q6:Does the machine operate easily?A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip for each machine,we also could provide the operate video.Q7:Can you produce product with my own brand?A7. Yes, it''s available except famous brand which are not allowed.
Q8:Could you customize color for me?A8: Yes,we can customize the color regarding your requirement.
>>
