Product Description
Product Description

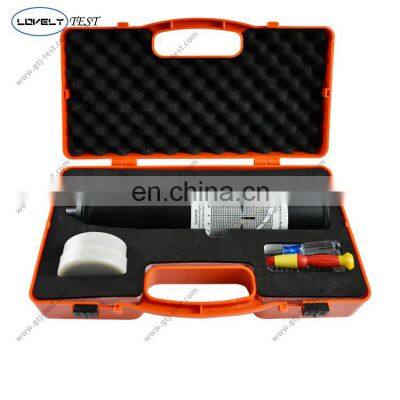

ZC3-A Schmidt HammerUsage Overview·ZC3-A concrete test hammer can accurately measure the thickness of the protective layer of the steel bar determine the position, orientation and distribution of the steel bar, measure the protective layer of the steel bar and estimate the diameter of the steel bar, store, view and transmit the monitoring data. This instrument can be widely used in real estate, highway bridges, engineering construction. Supervision and other areas of urban construction. Standard: JGJ/T23-2011; GB /T9138-1988; JJG817-93; ASTM C 805; BS 1881:202; NF P18-417; DIN 1048; UNI 9189Product Description · Center rod is made from imported material, high accuracy and durable resistance · The shell is made from high Aluminum or high polymer material in order to perfect protect instrument from damage and extend uselife.· Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that theinstrument is accurate.SpecificationItemConcrete Rebound HammerStandard Impact Energy2.207±0.1J (0.225Kgf.m)The static friction of pointer slider0.65N±0.15NLength of spring stretch75±0.3mmThe average rebound values on steel anvil80±2Measuring Range10~60MpaRadius of spherical tip25mm±1mmWorking Temperature-10℃~+50℃Working Humidity≤90%RHColorBlackUnpacking displayOur AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
>>
