Basic Info.
Transmission
Real Wheel Driven
Usage
Game, Toy, Gift, Teaching
Product Nametype
161QMK-A, 4-STROKE, SINGLE CYLINDER, AIR COOLED
Displacement (Cc)
168.9 CC
Output Max. Power (Kw)
7.6KW@7500 RPM
Max. Torque
11N.m@5000 RPM
Bore X Stroke (mm)
2.40 x 2.28 INCHES (61x57.8MM)
Starting System
Electric Start
Gasoline Fuel Tank Capacity (L)
8.516(Gasoline)
Transport Package
Iron Frame and Carton for Go Cart
Specification
230*120*66 cm
Production Capacity
12000 Pieces/Year
Packaging & Delivery
Package Size
230.00cm * 120.00cm * 66.00cm
Package Gross Weight
280.000kg
Product Description

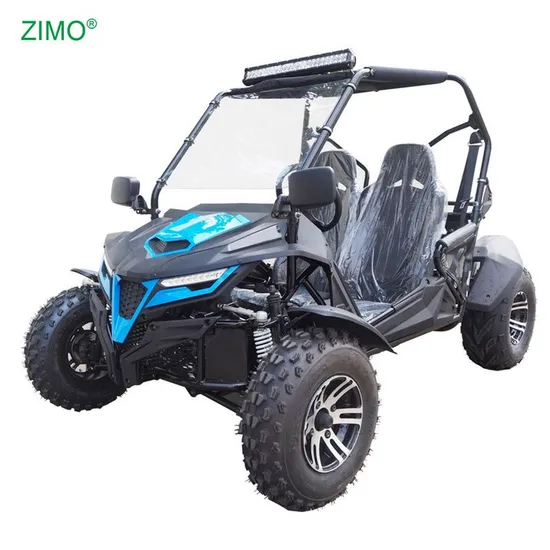

ZIMO Go Kart 168.9cc Off Road Racing Dune Buggy K5 ZIMO Go karts are the global patented products, both appearance and structural inverntion patent. Unique stylish vehicle design, special
safe structural design make driving experience more exciting and safer.With reverse as standard, engines technology is mature and reliable,
parts are readily available everywhere. Equipped with more spacious cockpit, play drift freely, throw slide, never roll over. Could drive through
river, crossing with water 20cm deep in it and run it over.
| Model | K3 | K5 |
| Dimension (mm) | | 1950x1290x1430 | 2340x1400x1480 |
| Package Size | 2000x1150x660 | 2300x1200x660 |
| Height to Seat | 400 | 470 |
| Min. Ground Clearance | 100 | 150 |
| WheelbaL x W x Hse | 1450 | 1800 |
| Pedal to Seat Back | 820-960 | 920-1060 |
EPA certificated
Engine Information | Type | JF210, 4-stroke, single cylinder, air cooled | 161QMK-A, 4-stroke, single cylinder, air cooled |
| Displacement (cc) | 208 | 168.9 |
| Output Max. Power (Kw) | 5.5KW /3600RPM (7.48HP) | 7.6KW@7500 RPM |
| Max. Torque | 11.2NM /2800RPM | 11N.m@5000 RPM |
| Bore x Stroke (mm) | 70 x 54 | 2.40 x 2.28 INCHES (61x57.8MM) |
| Climbing ability | 15° | 12° |
| Ignition | TCI | CDI |
| Starting system | Electric start or Pull start | Electric start |
| Battery | YTX12-BS 12V10AH | YTX12-BS 12V10AH |
| Gasoline Tank Capacity (L) | 3.6 | 8.516 |
| Carburetor Item | P19 | PD24J |
| General Information | Max speed (km/h) | 45 | 50 |
| Clutch | Exernal automatic CTV | Inside automatic CTV |
| Gears | D-R | D-N-R |
| Brakes, F / R | Hydraulic disk brake | Hydraulic disk brake |
| Tires, F / R | 18x7-8 / 18x7-8 | 22x7-10 / 22x10-10 |
| Suspension, F / R | Dual A-arm /
Thru-shaft with dual shocks and dual A-arm | Dual A-arm /
Thru-shaft with dual shocks and dual A-arm |
| Max load | 182kg (400LBS) | 227kg (500LBS) |
| Gross / Net Weight (kg) | 202 / 182 | 295 / 240 |
>>
