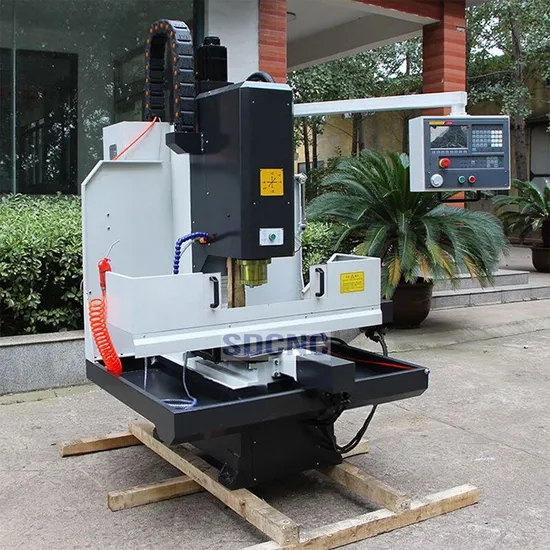

Xk7140 CNC Milling Center Vertical CNC Milling Machine Cutting Machine

Product Description

The main performance characteristics : 1.CNC horizontal lifting platform milling machine is good rigidity, can bear heavy load cutting work. 2, CNC horizontal type lifting platform milling machine with enough power and wide range of spindle speed. High speed cutting can be made by using hard alloy cutter, and the cutting efficiency can be fully played. 3, the spindle speed has impulse device, easy to change, the machine can quickly and effectively brake. 4, machine tool and important mechanical parts are manufactured from the alloy steel, easy to wear and tear of the parts are made of wear resistant material, Plastic guide rail , to ensure the machine has enough service life. 5.CNC horizontal lifting platform milling machine three motion are limiting device to ensure the safety of workers and machine tool, but also can be used as the multi machine tool management. 6, CNC horizontal lifting platform milling machine has a perfect lubrication system, Important transmission parts and bearings have perfect lubrication device,At the same time an set indicator for Conduct regular inspection 7, Good reliability, economical and practical, the price function than good Application : 1. Horizontal lifting platform milling machine is available on a variety of cylindrical milling cutter, wafer type milling cutter, angle cutter, molding cutter and milling processing of various plane, inclined plane, such as grooves. 2. If you use the appropriate milling machine accessories, processing gear, cam, an arc-shaped groove and a helical surface of special shape of parts, 3. Configuration universal milling head, circular table and indexing head and so on milling attachment,Can further expand the scope of the milling machine, this machine is applicable to all kinds of mechanical processing industry. Product Parameters

CNC Milling & Drilling Machine XK7132/XK7140 Features: **C3 class ballscrew with preload on three axis **Extra-wide base with single-piece casting forms a rigid machine structure to avoid deformation and Resonance during machining. **Oil and coolant Separation system to avoid cutting liquid get mixed with the lubricating oil. Full closed housing **Powerful spindle motor with 6000rpm gear box ** Extra-wide base and column ** Oil and coolant separation system Coolant wash gun
Standard Equipment: Full enclosed splash guard, G plus450 control, umbrella tool changer, Air-condition, Rigid tapping, Ethernet and USB interface, Oil and coolant separation on machine frame, Automatic lubrication system, Coolant system, LED working lamp, End of program light, Electronic Hand wheel(MPG), Tool box, Leveling bolts and blocks, Air gun, Handy coolant gun, operation manuals

Specification	XK7140
Table size	1700x400mm
X/Y/Z axis travel	1300x400x500mm
Spindle motor	7.5kw servo motor
Distance between spindle center and column surface	520mm
Distance from spindle to table	100-600mm
Spindle taper	BT40
Machine controller	GSK990, SIMENS 808D
Rapid speed of X/Y/Z axis	15m/min
X/Y/Z way motor torque	X/Y 8N/M Z10N/M
Position precision	0.02/300mm
Repetable Position precision	0.015/300mm
Geometry precision	0.01/1000mm
Spindle speed	0-8000rpm
T-slot	3/18/110
Max. load on table	900kgs
Machine dimension	2600x2200x2300

---
