Horizontal Metal Working Milling Machine Machine Tool Xq6032A/Xq6032c

Product Description

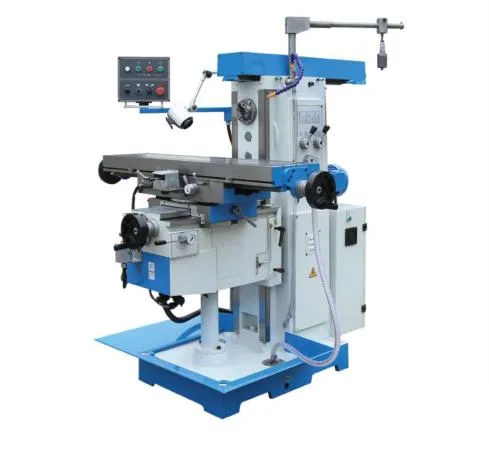

Horizontal Milling Machine Machine Tool XQ6032A/XQ6032C
Feature :
Rotary table(+ 45) is optional accessories.
300mm worktable can beordered at special request.
Machine with automatic feedcontrolled one servo motor inXYZ-axis.
Use one handle to controlforward and reverse movement inXYZ-axis.
Vertical millinghead is standardaccessory withthe speed rangeof 0-600r.p.m.
Specification:

Model No.	XQ6032A	XQ6032C
Item No.
Specifications
Table size	1370X320 mm	1370X320 mm
Table Travel (X/Y/Z)	820/300/400 mm	1000/380/400 mm
Table feed(X/Y/Z)	XY:30-830 Z:23-625 mm/min
Table rapid feed (X/Y/Z)	1335/1335/1000 mm/min	1335/1335/1000 mm/min
T-slots ( NO.Width/Pitch)	3/18/80 mm	3/18/80 mm
Spindle
Spindle taper	7:24 ISO40	7:24 ISO40
Distance between spindle nose and table surface	75-475 mm	75-475 mm
Distance between spindle axs and column guideway	155 mm	155 mm
Horiontal spindle speed	12 steps 35~1500 rpm	12 steps 35~1500 rpm
Other
Main motor	3 kw	3 kw
Torque of X/Y/Z axis AC servo motor	15 N.m	15 N.m
Overall size	1820x1680x1730 mm	1820x1680x1730 mm
Net weight	1600 kg	1700 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
