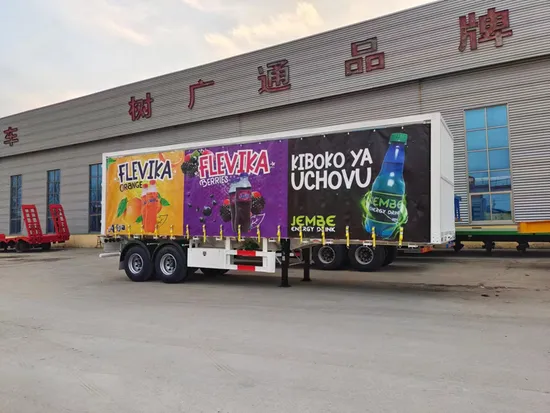

(Quality preferred) 2axle 3axle 4axle 40-100tons Cargo Transport Van Semi Trailer Drawbar Full Trailer Spread-Wing Trailer Side Curtain Truck Trailer

Product Description

customization: We have very much experienced designers,we can depend on the road conditions, the type of goods your transported, your load requirements, and etc,Targeted design of vehicle models and materials used,To achieve the best vehicle cost performance.

Here are the regular model parameters:

Size	13000*2500*4000mm
Gross Weight	9000kg
Kerb Weight	40T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Floor	3mm checkered plate
Side wall	height 2000mm thickness 1.5-2.5mm
Front board	2500mm
Axle	3axle,13 Ton axles
Suspension	American type suspension
Leaf spring	10pcs*13mm*90mm
Tire	12R22.5 12pcs
Wheel rim	9.0-22.5 12pcs
Kingpin	2"/3.5'' bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 28T
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Painting	Dual line pneumatic brake system,T30 air chamber ,40L air tanksEmer
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

Our AdvantagesCompany advantage
Shandong Guangtong Automotive Technology Co., Ltd was established in 2007, We have almost 18 years experience of production,sales,research and development in the field of special trucks.Since the establishment, we has sold 100,000 units.
Technical & quality strength
We have highly experienced technical engineers,Skilled production workers.
Advanced production equipment,Scientific product design ,Strict quality inspection and assessment,Product quality is more guaranteed.
We use advanced high strength steel material, products strong and durable ,vehicles lightweight ,cargo more goods, save fuel consumption.

Corporate culture& operation philosophy Win the market with high-quality products, Get customer with sincere service Survive by quality, Development by credibility Quality first, customer firs

Company glories &Certificate
We has obtained the national mandatory product quality "CCC" certification, passed the ISO9001:2000 quality management system certification, environmental and occupational health management system certification.
In 2018, we was rated as a national high-tech enterprise.We owns 20 authorized intellectual property rights (including 3 invention patents)

---
