High Quality Woodworking Pneumatic Veneer Clipper China Supplier

US$1.00-2.00 1 Piece (MOQ)

Basic Info.

Spindle Layout
Horizontal
Spindle Number
Single-Spindle
Feed Mode
Mechanical
Controlling Mode
CNC
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Free Service on Internet
Pressure Type
Pneumatic
Max Cutting Length
2680mm
Scissors Size
2750X125X14mm
Feeding Motor
3.37kw
Air Pressure
0.4-0.7MPa
Dimension
4100X1400X1900mm
Weight
2500kg
Max Cutting Thickness Wet Veneer
40mm
Max Cutting Thickness Dry Veneer
20mm
Transport Package
PE Film
Specification
4100x1400x1900mm
Trademark
CHANCSMAC
Origin
China
Production Capacity
10 Sets/ Month

Product Description

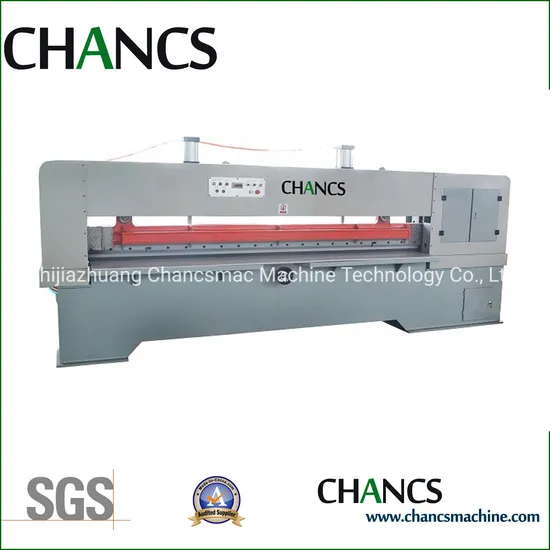

Peeling Veneer Clipper

1.Introduction: Veneer Clipper is also called Guillotine, designed for piled veneer cutting. It is a necessary equipment for plywood bending with variety of shapes and size.
2.Parameter:
Model CH268 CH310
Pressure type Pneumatic Pneumatic
Max cutting length 2680mm 3100mm
Max cutting thickness Wet veneer 40mm 40mm
Dry veneer 20mm 20mm
Scissors size 2750x125x14mm 3200x145x14mm
Feeding motor 3.37kw 3.37kw
Air pressure 0.4-0.7Mpa 0.4-0.7Mpa
Dimension 4100x1400x1900mm 4100x1400x1900mm
Weight 2500kg 3000kg

3.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
