Automatic Powder Coating Spray Booth for LPG Tank in Batch, Electrostatic Powder Painting Booth Equipment

Product Description

Product Description

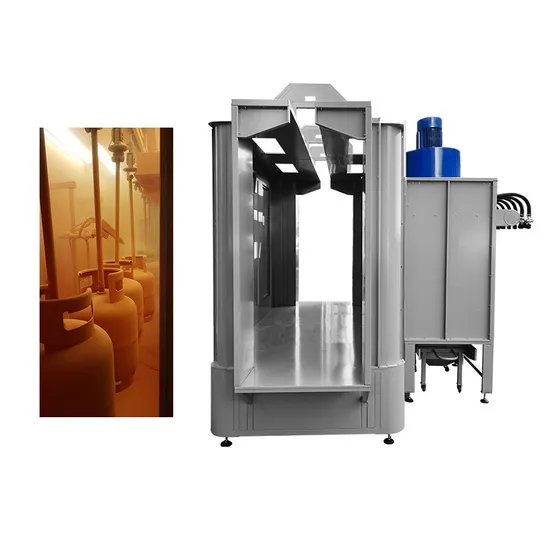

Automatic Powder Coating Spray Booth For LPG Tank in Batch, Electrostatic Powder Painting Booth Equipment
This is an automatic powder spray booth,drive through type, sutaible for painting LPG tank or gas cylinder or other metals in the powder coating line,can finish a lot painting parts,some fetures as below:
1. Booth material is powder coated steel. Booth one side is opened for automatic reciprocator powder coating and manual stand powder coating.
2. It equip with PLC control panel system ,more easily,quickly and accrurately for value settings. PLC controller also can control the value for oven at the same time.
3. It is easy to clean resulting in a quick color change and is safe to operate,no powder spillage out of the booth due to the powder recovery filters. Detail Features
Automatic Powder Coating Spray Booth Features 1. 0.1micron high-precision filters effectively separate powder particles and return clean air to the workshop.

2. A load-triggered pulsing system intermittently cleans filters for a longer life span.

3. Powerful and rigid exhaust fan provides a substantial decrease in noise at your shop.

4. Full-function PLC controller provides easy-to-use interface to set all processing parameters.

5. An economical fixed-collector-module solution for automatic powder coating operations.

6. Our booth fully constructed with powder-coated steel exceptionally increases stability and durability.
Specifications

Model	COLO-S-3145
Operating Dimensions	Width880 * Height1550 * Depth3000mm
Overall dimensions	Width1400 * Height2484 * Depth3000mm
Power Supply	220V/380V, 3Phase, 50-60HZ
Fan Power	5.5kw
Filter Count	4 pcs, Quick-release Type
Filter Material	Polyester
Filter Cleaning	Pneumatic

Application
COLO-3145 automatic powder coating spray booth with rotatable hanger and top track is specially suitable for powder coating LPG tanks, allows automatic and continuous production.
