Waste Tire Recycling Line Prices/Tyre Crumb Making Equipment/Scrap Rubber Production Line

US$38,000.00-98,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XKP-400/XKP-450/XKP-560
Voltage
380V
Structure
Vertical
Type
Tire Machinery
Type of General Rubber Machinery
Rubber Cutter
Type of Tire Machinery
Tire Shaping and Curing Press
Machine Type
Semi-Auto Rubber Powder Production Line
Application
Rubber and Plastic
Capacity
500kg/H,1000kg/H
Cooling Type
Water Cooling System
Final Product
Rubber Powder and Granules
After-Sale Service
Engineer Overseas Available
Machine Color
Customized
Transport Package
Exporting Standard (Wooden Box Packing)
Specification
CE/SGS/BV/ISO9001/; 2008
Trademark
EENOR
Origin
Qingdao
HS Code
84778000
Production Capacity
500 Set/Year

Product Description

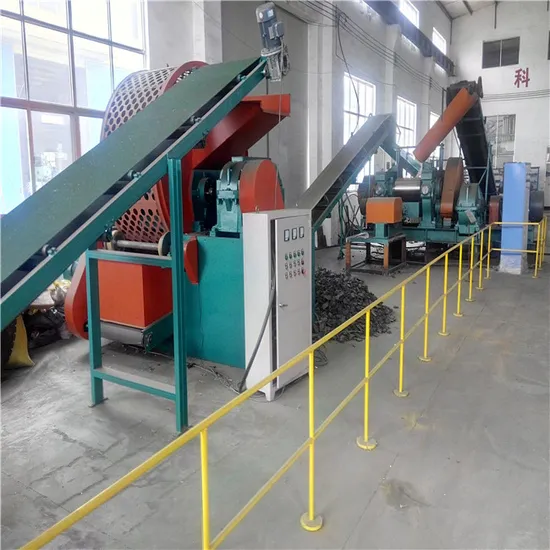

Waste Tire Recycling Line Prices/Tyre Crumb Making Equipment/Scrap Rubber Production Line
1.Main working process
2.Debeader ( oil hydraulic type)
Model: LS-1200 Capacity:20-40 tires/hour
Pulling force(T): 13
Max.tire diameter 1200mm
Power(KW): 7.5KW
Stroke distance: 1300mm
Dimension(L*W*H): 3.6*0.78*1.02
Weight: 2500KG
3.Whole tire cutter
Model :WTC1200
Capacity:20-40 tyres/h
Motor power:5.5kw
Tire range:Max 1200mm
Dimension:2080*1000*2130mm
4.Whole tyre shredder
Model
ZPS-900
 ZPS-1200
Production capacity
 1.5-2 Ton/hour
 2.5-3 T/h
Size of feeding
 ≤900 mm whole tyre
 ≤1200 mm whole tyre
Discharging particles
 ≤50*50mm
 ≤60*60mm
Motor powder
 60 kw
110 kw
Discharging motor
 2.2 kw
 4 kw
Cutter rotate speed
 16 r/min
 31 r/min
Screener rotate speed
 6 r/min
 8 r/min
Dimension (L*W*H)
 2.8*2.1*2.4 m
 5.2*2.8*3.5 m
Weight
9.2 T
 14.8 T
Details :
Knives material: H3 , Germany standard, forged, heat treatment by high frequency, some factory only use 45# steel, the Price is more cheaper(only 1/3 of H3 ), but the life is more shorter! The life of the knives is the most important for the shredder machine.
5.Final Products(50x50mm tire blocks):
6.tyre crusher
Type
 XKP-400
 XKP-450
 XKP-560
Front roll diameter(mm)
 400
 450
 560
Rear roll diameter (mm)
 400(grove roller)
 450 (grove roller)
 510 (grove roller)
Working length of rolls(mm)
 600
 650
 800
Front roll surface speed(m/min)
 17.32
 23.2
 25.56
Friction ratio
 1:1.38
 1:1.38
 1:1.30
Max.nip(mm)
 8
 8
 15
Production capacity(kg/h)
 200-300
 600-800
 -1500
Motor power(kw)
 45
 55
 75
Overall dimension(mm)
 3950*1800*1780
 4770*1846*1835
 5064*2284*1978
Weight(kg)
 7000
 12000
 18000

7.Fiber separator
Capacity:500-1000kg/h
Motor power:5.5*2+0.75 kw
Dimension:1.5*1.5*3.4(m)
Weight:about 1.5T
