Hot Galvanized Steel H Type Chicken Raising System for Broiler House

Product Description

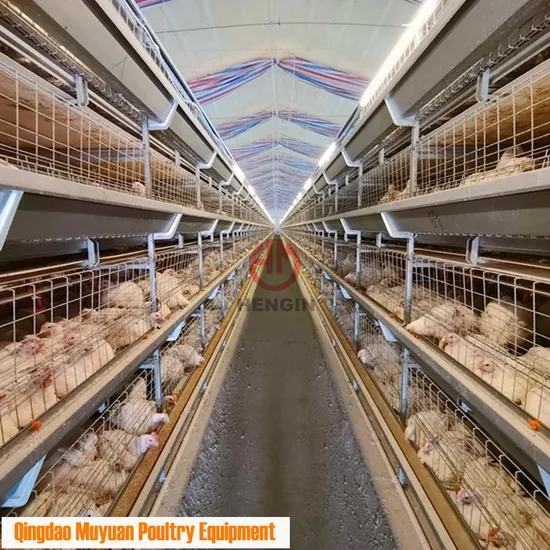

Hot Galvanized Steel H type Chicken Raising System For broiler house

Products Introduction
The new cage is developed according to the market demand , compact structure, new design, good ventilation, it is an ideal choice for all the medium and small scale farmers.
1. 4 tiers H frame broiler cage size

products name	4 tier H type chicken broiler cage	Model	9LRC-4272
Material	galvanized wire	Tiers	4 Tiers
one unit size	1200mm×1723mm×2655mm (L×W×H)	unit capacity	136 birds
one cell size	1200mm×700mm×460mm (L×W×H)	cell capacity	17 birds per cell
life span	15~20 years	living space/bird	494 cm²

2. Advantage:
1).The frame of cage is formed with the hot galvanized plate by using CNC machine, Accurate assembling can improve the stability of the cage structure, also avoid manure belt off running.
2).The feeding trough is used of hot galvanized material , it is more strong than PVC material , Bottom of trough is changed to V-shape, more suitable for bird's eating habits; the feed is distributed more uniformly, that effectively prevent the moldy feed and ensure the broilers to eat fresh feed,also greatly reduce waste of feed.
3).A lower connector of cage is enhanced to stamp it , convenient to observe and take birds.
The doors adopt push-in style, easy to operate.
4).The surface of driving rolls is integrally coated with rubber, thus increasing friction, solving the problem about manure belt off-tracking, extending the belt service life.
One scraper is installed at the end of manure belt, and two secondary scrapers are installed below returning belt, so that manure can be cleared thoroughly.
5).Each tier manure is conveyed to the end via a manure belt, falls onto the cross manure belt and finally is conveyed to a manure truck outside poultry house via the elevating manure belt .
Periodical manure clearing improves the rearing environment and reduces the occurrence of diseases.
3. Fully Cage System includes:

1). cage and frame
2).fully automatic drinking system
3).fully automatic feeding system
4).fully automatic manure removing system
5).fully automatic lighting system
6).fully automatic environment and electric controller system
Our Workshop
Our factory was founded in 2002 and has more than 800 employees,covers the 100,000 square meters,is a professional manufacturer of poultry farming equipments including "H"frame layer cage system,broiler cage system,duck-production cage system, ,egg-duck cage system ,layer rearing cage system,layer breeder parents cage system,feed silo,bulk feed transporting tank and feed machinery etc.
We have been regarding technical innovation as the effective power of development,and continuously absorbing the advanced technology and experience to improve our capability of research and development and manufacture special products according to different requirement of customers.we have an advanced R&D center and a complete R&D system,and a R&D team which more than 40 technicians has been organized.At present,we have more than 260 kinds of products and more than 80 patents.The products and projects with HENGIN brand have covered the entire China as well as more than 60 countries and regions.
FAQ
Q1:How many types for broiler chicken cage?
A1: We have two types of H frame broiler cage . The main different is on feeding system and birds harvset system .
1). fully automatic with feeding pan system and automatic birds harvest system, we usual do 3 tiers and 4 tiers ,refer to below pictire.
2) fully automatic with feeding trough system and manual birds harvest system , we usual do 3 tiers and 4 tiers , refer to below picture .
Q2:How much per set cage?
A2:Different model,price is different.In addition,there are other complement equipments.
Need know how many birds you want to rear,then we can give you a specific price list
with house size.

Q3:How long is the warrenty?
A3:1 year.

Q4:Who is in charge of install ?
A4:We will arrange two engineers to your country to guide installation
and provide training of full cage system.

---
