Underfloor Heating Floor Heating Water Pexb Pipe

Product Details

Product Description

Product Description

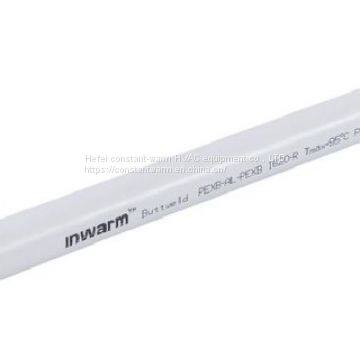

Underfloor Heating Floor Heating Water Pexb Pipe
1.Advanced European manufacturing craft create reliable production processes
By the professional technical level in the pipe industry and mature European craft, the quality of Inwarm pipe can reach the standards of quality certification such as Spanish AENOR, German SKZ, French CSTB, UK WRASS and Polish PZH.
2.Effective quality control root in strict quality monitoring and inspection of raw materials.
We has a complete set of pipe testing equipment and laboratories that meet European standards.Each roll of pipe will be tested on line in order to ensure no leak check produced, we won't let unqualified products leave the factory.
A.During the production, the inner tube is continuous pressure tested which filled with 6 kg air pressure;
B.At the end of production,we put sample to the hydraulic equipment with a continuous internal water pressure test of 40 kg water pressure;
C.The imported equipment dynamic monitoring of welding quality when production.
Also, Inwarm pipe industry has a complete inspection mechanism for raw materials, which will reject unqualified raw materials, guarantee the reliability of Inwarm aluminum plastic pipe raw materials and control quality from the source.
3.The advantages of Inwarm double crosslinking welded aluminum plastic composite pipe
The structure layer is pexb-al-pexb,the inner and outer layers are all import pex-b materials with excellent performance.
A.It's a reinforced high temperature resistant aluminum plastic composite pipe,the inner and outer layers are made of crosslinked polyethylene (PEX-b) from Germany silon company.It is stable in heat resistance and mechanical strength,also it has uniform crosslinking degree.This compounded aluminum plastic pipe made by imported material,the shrinkage coefficient of the plastic layer is almost zero during alternate use in hot and cold water.The leakage between copper joints caused by thermal expansion and cold contraction is effectively avoided.
B.Adopting European advanced butt welding technology to ensure the stable product quality.
The middle aluminum layer of Inwarm XPAP butt welding aluminum plastic composite pipe is thicker than lap weld aluminous plastic composite pipe,we adopt automatic laser butt welding technology n and ultrasonic flaw detection to ensure that the welding place is fully welded prevent faulty soldered or leakage.The aluminum layer and the inner and outer layer pex-b are bonded with high quality and high temperature resistant adhesive.One-step extruded into shape.
C.Features of Inwarm double crosslinked aluminum plastic composite pipe
a.High temperature resistance, corrosion resistance, impact resistance and rupture resistance.
b.Relatively better plastically that can be bended freely without rebound.
c.Light weight, easy to Transportation and storage.
d.Better electromagnetic shielding, fire resistance and heat preservation performance.
e.The inner wall is smooth that water can flow fast,also there is no scale.
f.The service life is over 50 years, which can be the same as the building;
g.200M per roll but also can be produced according to the customer's requirements.
D.Extensive use
Inwarm XPAP aluminum plastic composite pipe is not only a good heating pipe for water floor heating, but also a connection pipe for radiator heating using octopus shape system. The better performance of low temperature and high temperature resistance also makes Inwarm double crosslinked aluminum plastic composite pipe as a better choice for solar energy pipe and domestic hot water pipe.
Inwarm aluminum plastic composite pipe integrates the advantages of metal pipe and plastic pipe, while eliminating their disadvantages. It has reasonable structure, excellent physical and chemical performance, high scientific and technological content, economic and practical, clean and sanitary, extremely convenient installation and construction, so the overall cost is low.

---
