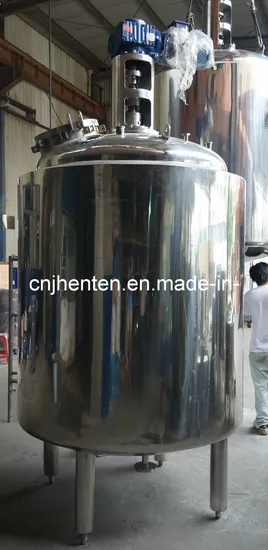

Stainless Steel Jacket Mixing Kettle

Product Description

Jacket kettle Introduction
Specification: 10L~30000L Material: SS316L or SS304 Surface finish: Inside surface is Ra0.28~0.6μ M by mechanical Polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μ M by satin finish. Pressure: ATM or pressure vessel (-0.1~1Mpa) Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation Jacket type: Dimple jacket, full jacket, or coil jacket Insulation material: Rock wool Components can be equipped as request: Standard components: Manhole or handhole, sight glass, cleaning ball Optional components: Vent filter with Pall cartridge or China brand cartridge Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Valves
Jacket kettle Application:It is used for mixing all kinds of liquid products in pharmaceutical, food, chemial and biological fields.Construction of Jacket kettle We have different kinds of agitatorsBottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. This kind of agitator is mixing thin viscosity, such as eyedrop, injection, CIP liquid, water, etc...Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. This kind of agitator is mixing syrup, injection, blood, oral liquid, culture medi a, etc...Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. It is mixing higher viscosity, such as sediment or viscosity oral liquid, etc...Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. This kind of agitator is mixing most high viscosity, such as suspension, oil, fat emulsification, etc...Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. This kind of agitator is mixing most high viscosity, such as suspension, oil, fat emulsification, etc...One tank can install one agitator, if client need, one tank can install two agitator together.

Material:	SS304 or SS316L or Duplex stainless or 904L
Design Pressure:	-1 -10 Bar (g) or ATM B9
Work Temperature:	0-200 °C
Volumes:	50~30000L
Construction :	Vertical type
Jacket type :	Dimple jacket, full jacket, or coil jacket
Structure :	Single layer vessel, vessel with jacket, vessel with jacket and insulation
Heating or cooling function	According to the heating or cooling requirement , the tank will have jacket for requried function
Opitional Motor:	ABB, Siemens, SEW or Chinese brand
Surface Finish:	Mirror Polish or Matt polish or Acid wash&pickling or 2B
Standard components :	Manhole,sight glass , cleaning ball
Optional components :	Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves
Applications:	Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting Industrial

---
