Features and Benefits
1. Thermal conductivity: 2.0 W/m-K
2. Ultra-conforming; designed for fragile and low-stress applications
3.Ambient and accelerated cure schedules
4.100% solids – no cure by-products
5. Excellent low- and high-temperature mechanical and chemical stability
BERGQUIST GAP FILLER TGF 2000 is a high performance, thermally conductive, liquid gap-filling material supplied
as a two-component, room or elevated temperature curing system.
The material provides a balance of cured material properties and good compression set (memory).
The result is a soft, form-inplace elastomer ideal for coupling “hot” electronic components mounted on PC
boards with an adjacent metal case or heat sink. Before cure, it flows under pressure like grease. After cure,
it won’t pump from the interface as a result of thermal cycling and is dry to the touch. Unlike cured gap-filling materials,
the liquid approach offers infinite thickness variations with little or no stress during displacement and assembly.
BERGQUIST GF2000 also eliminates the need for specific pad thickness and die-cut shapes for individual applications.
BERGQUIST GAP FILLER 2000 is intended for use in thermal interface applications when a strong structural bond is not required.
BERGUQIST TGF 2000 Typical Applications Include:
1.Automotive electronics
2.Computers and peripherals
3. Between any heat-generating semiconductor and a heat sink
4. Telecommunications
5.Thermally conductive vibration dampening
GAP FILLER TGF 2000 Configurations Available:

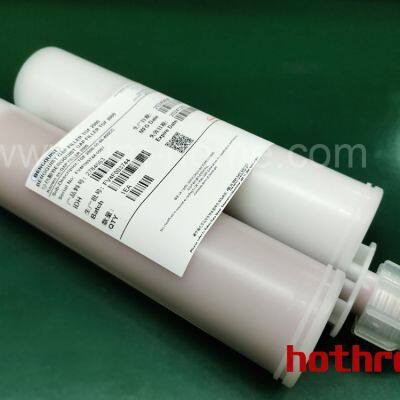

1. Supplied in cartridge or kit form
>>
