5g CPE 2.4G+5g Dual Band Network WiFi6 802.11ax WiFi Router for 64 Devices with Rj11 Port

Product Description

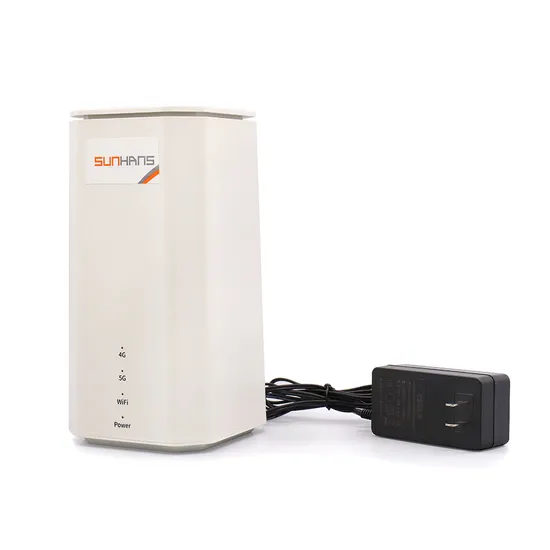

New 5G WiFi Router with SIM Card Slot Home CPE 4G LTE Wireless Router Support 64 Users
Product DescriptionFeatures:1.5G Cellular: Built-in Qualcomm SDX55 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi mode.2. Wi-Fi 6 (802.11ax): The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, bestnetwork efficiency.3. Higher Wireless Capacity: Dual-band 6 spatial streams, the CPE outputs wireless bandwidth (574 + 2400), makes you peace of mine while enjoy UHD videos, online games at the home rush hours.
4. The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
Product Parameters

Model No.	SHFi5GIDUX55
Product Form	Appearance	Vertical
	Size	108mm*108mm*234.5mm
	Weight	350g
Platform	Modem Chipset	Qualcomm SDX55
	WiFi Chipset	IPQ 8071
5G & LTE
Technical Standard	UE Category	3GPP Release15, Category 22; up to 2.5Gbps DL and 316Mbps UL
	Frequency Band	5G: n7, n77, n78 LTE-FDD: B1/B3/B7/B8/B20/B28/B32 LTE-TDD: B38/B42
	CA	1A(4)+3A(4); DC_1_n77, DC_3_n77, DC_1-3_n77, DC_1_n78, DC_3_n78, DC_1-3_n78
	Internal LTE Antenan	4x4 MIMO, Support B1/3
	256 QAM	Support
WLAN+ROUTER
Technical standard	IEEE 802.11a/b/g/n/ac/ax	Support,
	WIFI Frequency	2.4G, 574Mbps@40Mhz, AX 2x2
	WIFI Frequency	5G, 2.4Gbps@80Mhz, AX 4x4
	Internal WIFI Antenna	4x4 MIMO, Support MU-MIMO
	1024 QAM	Support
	DBDC	Support
WIFI Channel	1~13 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140,	Support
Users	WIFI access	Up to 64
Multi-SSID	Support	2
Security,encryption	Support	WPA-Personal,WEP(64-Bit),WEP(128-Bit),WPA2(Personal)
External Hardware Interface
Interface	WPS Button	1,Push push, Establish WPS PBC paring process
	Reset Button	1,Embedded, Reset to factory settings
	LAN	2, Gigabit Ethernet ports
	External Antenna - 5G	Support, 2
	RJ11	1,
	Power Jack	1, 5mm 12V/3A
	SIM card slot	Nano SIM
	LED indicator	4G,5G,WIFI,Power
Device management
TR069	Support
Local Firmware Update	Support
Remote Firmware Update	Support	Based on TR069
QoS	Support	Base on service, Band control etc.
Setup Wizard page	Support
Basic telecom features
Phone(Fixed-line)	Support	support VOLTE
Basic Call Features	Support	DTMF Tone,Caller ID,Call Waiting,Call Forward (Busy, Unconditional, No Reply),etc.
PIN1 lock	Support
PIN1 code modify	Support
APN Setting	Support	support Auto APN / Manual setting APN
Network Mode	Support	support Automatic / LTE only / 5G only
Network Search	Support	support Automatic / Manual
Others
Certification	ROHS	Support
	CE	Support
	Others	As required
Enviromental parameters	Working Temperature	0ºC~40ºC
	Storage Temperature	-20ºC~70ºC
	Working Humidity	10%~90%
	Storage Humidity	5%~95%
Packaging	CPE	1
	Adaptor	1, 12V/3.5A
	Quick guide	1

Installation InstructionsMain futures :
1. Support 4G/5G network,bands can be customized
2. Qualcomm SDX55 chipsets
3. VOLTE with RJ11 port optional
4. 2 Gigabit Ethernet ports
5. 4x4 MIMO internet WiFi antenna, Support MU-MIMO
6. Surpport IEEE 802.11a/b/g/n/ac/ax, WiFi 6.
7. Support more than 64 WIFI devices online simultaneously.
