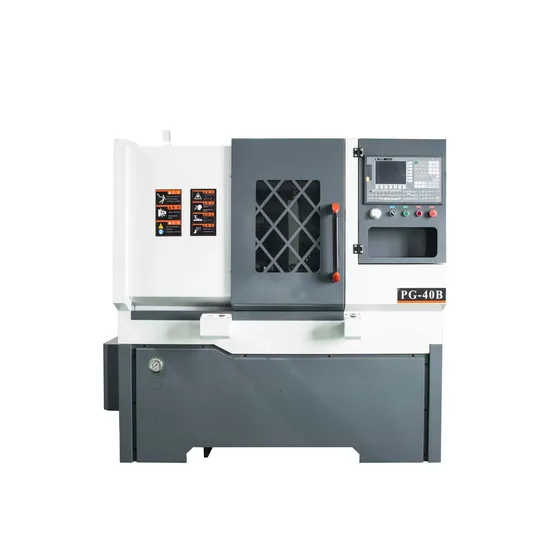

Heavy Duty Automatic CNC Metal Lathe Optional Vertical Power Head with Y Axis CNC Milling and Turning Machine with GSK System

Product Description

Product Description
Detailed Photos
Technical Parameter

No.	Name	Quantity	supplier	Remark
1	System	1 set	GSK	980TB3i
2	Spindle motor	1 set	Lilong motor	5.5KW
3	Servo Driver	Each 1 set	KND original	X axis 6 N Z axis 6 N
4	Spindle front bearing	1set	Renben	7215DBB
5	Spindle rear bearing	1set	Renben	7213DBB
6	X,Z axis screw bearing	Each 1 set	Luoyang Bearing	720604 Flange
7	X,Z axis ball screw	Each 1 set	Taiwan SHAC	X axis 2510*655 Z axis 3210*922
8	X axis linear guide rail	2 pcs	Taiwan SHAC	Ball 25*740
9	Z axis linear guide rail	2 pcs	Taiwan SHAC	Ball 30*960
10	Spindle	1 set	Xinshiheng	A2-5
11	Tool post	4 pcs	Xinshiheng
12	Cutting fluid pump	1 unit	Zegong	90W
13	Auto lubrication system	1 unit	Yuhuan Hejin	Gear pump
14	X,Z axis coupling	Each 1	Jiangsu	17-19
15	Clamping	1 set	Dingchang	Hollow 160mm chuck 1248 oil cylinder
16	Spindle frequency converter	1 unit	Xinshiheng	5.5KW

Machining Capacity
	Maximum turning diameter of the bed	mm	380
	Maximum turning diameter of the slide	mm	140
	Maximum machining diameter	mm	160
	Maximum machining length	mm	200
	Bar machining diameter	mm	40
Stroke	X axis stroke	mm	680
	Z axis stroke	mm	480
Spindle	speed	RPM	In 3000
	Spindle nose)		A2-5
	Spindle hole diameter	mm	48/56
	Bearing model		7215/7213
Tool post	Tool post form		Straight mounted type
	Tool install quantity	PCS	8
	the height of the rectangle tool shank	mm	20
	Diameter of boring bar shank	mm	20
Tailstock	Tailstock stroke	mm	null
	Diameter of tailstock sleeve	mm	null
	Taper of tail seat sleeve cone hole		null
	Tailstock sleeve stroke	mm	null
Feeding velocity	Fast feeding velocity	m/min	X:12/ Z:20
Motor	Spindle motor	kW	5.5
	Power head motor	kW	PCS
	Feeding shaft motor	NM	X: 6 / Z: 6
	Hydraulic pump motor	kW	1.5
	Cutting fluid motor	W	90
Supply power	Power supply power	kVA	7.5
Tank capacity	for hydraulic equipment	L	40
	for lubrication oil	L	2
	for cutting fluid	L	60
Machine Size	Height of machine	mm	1800
	The height from the ground to the centerline of the spindle	mm	110
	Floor space	mm x mm	1 7 0 0 x 1400
	Weight	kg	1700

Company Profile
Certifications
Customer Reviews
Exhibitions

Packaging & Shipping

FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.

---
