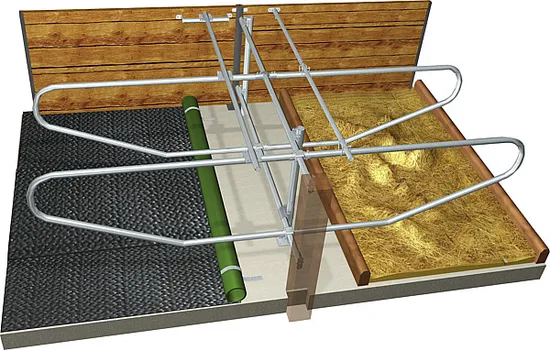

Custom Galvanised Cattle Stall Cubicle Divider Universal - Variant: Support Frame

Product Description

Custom Galvanised Cattle Cubicle Divider Cattle Stall The description: Steel tubing cow free stall Heavy Duty Tubing: 48x2.5mm, 48x3mm, 60x3mm, 75x4mm tubing available Various length and width available; Can suit different cow/cattle/dairy size Install easily and quickly Superior comfort for all cow size Complete range of fittings for the cattle cubicle available The surface is wholly hot-dip galvanized after machining Can be installed for single row or head-to-head style OEM service available Customized

No	Name	tube	I	high	base plate	Weight
FTW620	Cubicle Divider5	Ø 48.3 mm	1.5m	0.96m	40cm	15kg
FTW621	Cubicle Divider6	Ø 48.3 mm	1.30m	0.85m	40cm	14kg

Custom Galvanised Steel Cubicles System For Cattle

No	Name	tube	I	high	base plate	Weight
FTW520	Cubicle Divider	Ø 60.3 mm	2.15 m	1.35 m	48 cm	30kg
FTW521	Cubicle Divider	Ø 60.3 mm	2.05m	1.25m	48 cm	28kg
FTW522	Cubicle Divider	Ø 60.3 mm	2.05m	1.15m	48 cm	27kg
FTW523	Cubicle Divider	Ø 60.3 mm	1.8m	1.15m	48 cm	25kg

Custom heavy duty Galvanised Tombstone Circular Feeder for horses 12 feed spaces with 3-point linkage
Galvanised Steel Horse /Cattle Hay Feeder With Roof
Clear bar spacing: 6 cm • Side filling • Integrated roof edge protection, no injury risk • Also suitable for deer • Feeding height: 79 cm • Incl. bolts for ground anchoring • Detachable feet
Custom Galvanised Steel OD 28cm Bucket Holder
Bucket Holder with Cage Ø 285 mm
Galvanised flat steel profile Hooks for hanging on tubing up to 55 mm For buckets with Ø 28 cm
Custom Hot Dipped Galvanized Steel Circular Hay Ring Feeder With Roof
Round Hay Feeder With Roof -Suit for 6ft round hay bales -Feeder diameter 2.0m -Roof diameter 2.2m -Bottom to Top Height 1.75M, Roof Height 30CM. -Weight: 100kg
Yearling Circular Hay Ring Feeder with 18 feeding space
1.Standard Circular Ring Feeder is manufactured in two sections bolted together.
2.The Yearling Circular Ring Feeder - 1600mm (5'3") diameter x 1145mm high x 460mm deep welded base 18 feed spaces Manufactured in two sections bolted together 30mm x 30mm SHS horizontal rails 30mm o/d tube vertical rails at 279mm approx centres 3.Custom Galvanised Standard Cattle Ring Feeder With 20 feeding Space 2135mm (7'0") diameter x 1295mm high x 535mm deep welded base. 20 feed spaces. 1.75mm x 31.75mm SHS horizontal rails. 30mm o/d tube vertical rails at 328mm approx centres. 4.Custom Galvanised Heavy Duty Cattle Hay Ring Feeder Ring Feeding 2135mm (7'0") diameter x 1450mm high x 670mm deep welded base. 20 feed spaces. 38.1mm x 38.1mm SHS horizontal rails. 35mm o/d tube vertical rails at 335mm approx centres Custom Hot Dipped Galvanized Steel Part meshed Sheep Fence Lambing Hurdle

FTW MS 123 105	1.23m	1.05m
FTW MS 153 105	1.53m	1.05m
FTW MS 183 105	1.83m	1.05m

Framework	7 Horizontal Rails sheep hurdle with pin plate or Loop plate
Side uprights	25mm x 25mm x 1..5mm square section	2pcs
Top Rail& Bottom Rail	22Φx1mm round section	2pcs
Infill rails	21Φx1mm round section	5pcs
Hurdle loop	25 x4mm Flat	2pcs
Brage	25 x3mm Flat	1pcs
Fixings	interlocking up and over mechanism	2pcs
	Plastic end caps = 2 per panel
Finish	Hot dipped zinc galvanised after fabrication to EU. Standards
Height	3ft to top rail
Widths	1.22m (4ft) 1.84m (6ft)
Package	Bundle with plastics strapping, on wood pallet.

1.Fencing Characteristics:
Durable, easy to installation, easy to moved, easy to transportation. Won't break down or collapse when cattle, pigs, sheep or other large livestock run into or rub against it.Welded one piece steel construction,virtually maintenance free,sag resistant,easy to erect, no stretching

2. Fencing Application:
Great for round pens, arenas, paddocks, overnite shows, trail rides and stalls. Designed for your horse safety with rounded corners (no sharp edges).


3.Fencing Advantages:

1.Our livestock cattle panel meets high standard, and is very popular in the market

2.the panel are inter-locking, very sturdy and easy install, no need to dig holes or lay foundations

3.the metal rails are hot dip galvanized before welding, thus has strong capability of anticorrosive.

4.Fencing detailes.

Sheep Hurdle 1 (F-001-0001)
Framework	90cm x 150cm, 8 Horizontal Rails
Side uprights	35mm x 35mm x 2mm square section 2pcs/panel
Top Rail& Bottom Rail	28Φx1.5mm round section 2pcs/panel
Infill rails	22Φx1.5mm round section 6pcs/panel
Pin holes	30mm x 50mm x 5mm Flat
	(hole 16mmx30mm)
Center strip	20mm x 4mm Flat 1pcs/panel
Plastic end caps	2 per panel 2pcs/panel
Finish	Hot dipped zinc galvanized after fabrication to EU. Standards
Height	90cm to top of top rail

---
