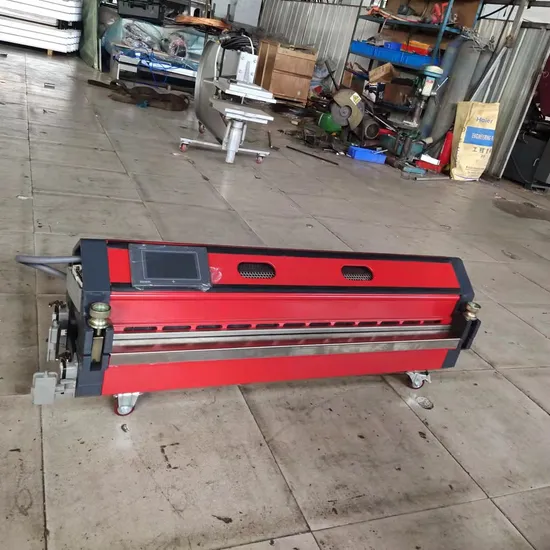

PVC PU Conveyor Belt Splice Joint Press

Product Description

Product Description PVC/PU Rubber Belt Joint Machine
PVC/PU Rubber Belt Joint Machine The All In One Splice Press with air cooling system. This air cooled press has all components integrated into the tool, allowing a user to simply plug it into electricity and it is ready for use. Fast Splicing and is Portable Splice Press, easy to bring to anywhere.
Application:
THEMAXBelt PA series ALL-IN-ONE air cooled press has all components integrated into the tool, allowing a user to simply plug it
into electricity and it is ready for use. Fast and Portable Splicing, can be bring to anywhere for working easily.
Used for PVC PU PVK belt and thermoplastic belt materials etc.

Model	PA1200
Effective length	1229mm
Effective width	130 mm
Weight lower part	28.5 kg
Weight upper part	24.3 kg
Total weight	53 kg
Overall height	255mm
Max. pressure	2 Bar
Max. temperature	200 ºC
Packaging list(L x W x H)	1630*450*520mm
Gross weight	120kg

Our advantage
THEMAX 2016 PA splice press for joint thermoplastic conveyor belt
Perfect model to splice on site, avoiding additional items such as control boxes, cooling tanks or hoses.
By means of this concept, the splice is made easier and in a more comfortable way.
The joint cycles are really fast.

Model	PA300	PA600	PA900	PA1200	PA1500
Effective Length	305mm	610mm	914mm	1219mm	1524mm
Effective Width	130mm
Max.Working Pressure	2 Bar / 28 PSI
Max,Temperature	200 ºC / 390 ºF
Power	1.2kw	3.2kw	4.5kw	5.8kw	7kw
Overall Dimension	505*250*220mm	805*250*220mm	1105*250*225mm	1405*250*225mm	1705*250*225mm
Total Weight	21kg	30kg	38kg	54kg	62kg
Machine&Flight Case Weight	39kg	52kg	66kg	80kg	95kg

Features:
1. FRIST BRAND IN CHINA .
2. Portable splice press, light weight and with filght case as standard packing, easily removed to anywhere for job site using.
3.Fast Splicing: heating & cooling time within 13 mins.
4.All-in-one design: integrated air-cooling system and also air compressor inside.
5.Temperature controller(EUROTHERM), time controller(EUROTHERM) and air pressure(SMC) controller are imported.
Packing: We will use film to wrap the machine. then put into wooden box.
The normal package is wooden box.(Fumigation treatment).

---
