PUR Hotmelt Glue Laminating Press Stick Line Machine

US$55,000.00-56,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TZ1350B-PUR
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
Matt Film
Plastic Film Mulching Modes
Hot Laminating
Performance
PVC Laminating
Transport Package
Plastic Bags
Specification
13000*2100*2550mm
Trademark
HZH
Origin
Qingdao China
Production Capacity
20 Sets/Month

Product Description

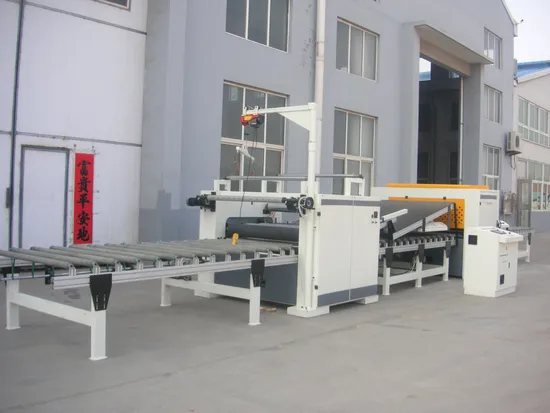

PUR Hotmelt Glue Laminating Line Machine
Model TZ1350B-PUR
Max. panel width 1220mm
Max. feeding speed 15m/min
PUR glue machine 55GALLON(13KW)
Gluing roll diameter φ240mm
Press roll diameter φ400mm
Total Power 65 Kw
Overall dimensions 13000×2100×2550mm
Weight 6000kg
Product Application:
This machine is used to laminate high glossy film, acrylic panel, PVC panel, PVC film, paper, PET film, on MDF, plywood, particle board, PVC panel and other panel.
Characteristics:
1.It covers the functions of dust collection, gluing, acrylic feeding shelf and laminating.
2.This machine is special for PUR glue. The glue supply machine is famous brand made in China.(55 gallon)
3. This machine is control by PLC system and touch screen. So it's very easy to operate.
4. The heating of gluing machine is by oil, temperature is adjustable. It can keep the temperature very well; finally keep the best adhesive strength.
5. The Gluing roll is made by special material; there is one stainless steel roll, one silicon roll. It's the best material for PUR glue.
