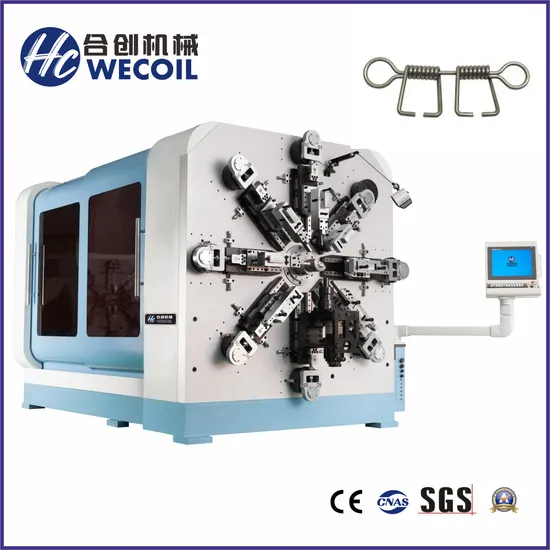

HCT-1280WZ 3-8mm CNC Security Spring Forming machine

Product Description

HCT-1280WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis. It composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; the damage is zero on mandrel and machine. It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs. Largely increased the spring making range, it is precise, stable and easy to operate.
The crank connecting link system are include eight knife rest, eight knife rest are separately driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation. The feeding system are equipped at the rotation system of the machine, it has 4 pairs feeding rollers, 2 rollers as one pair, different wire size need different feeding rollers, the computer controls the feeding system, the moving unit is 0.01mm, the maximum moving length is 99999.99 unit.
Certificates
Packaging
ABOUT US
Workshop area over 4000 square meters.
Over 30 high-level specialized technical personal 30 people
Please feel free to consult us about your project, because our purpose is 'strive to creat a more powerful tomorrow for customers'
Thank you!

---
