US$20,000.00-25,000.00
|
1 Box
(MOQ)
|
Basic Info.
Tube Machine Type
Paper Core Cutting Machine
Layers of Roll Paper
9 - 16
Reelpipe Speed
12 - 18m/minute
Wall Thickness of Paper Tube
1mm-15mm
Product
Fully Automatic Paper Core Cutting Machine
Paper Tube Inner Dia
50-152mm
Paper Tube Thickness
4-15mm
Cutting Speed
60 Cuts/Min
Turret Movement Speed
1.8 M/Min
Voltage
380V 3 Phase 50Hz
Transport Package
Film and Wood-Case
Specification
4000*920*1600mm
Production Capacity
20PCS/Month
Product Description

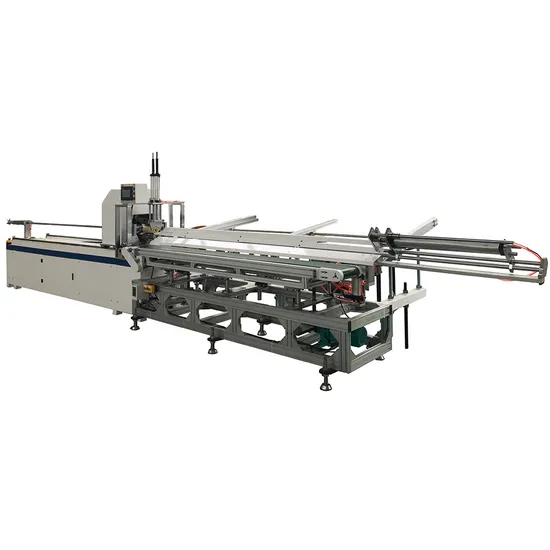

Fully Automatic Shaftless Paper Core Cutting Machine
Main Parameters:
| Jumbo Tube length | 2000mm |
| Paper Tube Inner Dia | 50-152mm |
| Paper Tube Thickness | 4-15mm |
| Cutting Length | 10-2000mm |
| Cutting Speed | 60 cuts/min |
| Turret movement speed | 1.8 m/min |
| Working Pressure | 0.6Mpa |
| Voltage | 380V 3 Phase 50Hz |
| Power | 3kw |
| Cutting Mode | Paper tube turn; knives and axes do not turn |
| Operator | 1 person |
| Mould | 2 sets |
| Uploading/Unloading | Hand control |
| Dimension | 4000*920*1600mm |
| Weight | 900kgs |
Specification:
| Machine adopts Taida PLC(Taiwan) and Xianda HMI(Shenzhen) control system, all the parameters are displayed on the touch screen, and it runs automatically. |
| It adopts Shenzhen Zhengxuan frequency inverter and Xinling motor(Zhejiang) to control. |
| It adopts 2 sets Yaskawa servo motor(Japan), one servo motor(0.85kw) to control cutter blade, the other servo motor(1kw) is moved, it control machine head. |
| It adopts 2 sets Yaskawa servo driver, one servo driver to control (1kw) to control cutter blade, the other servo driver(1kw) is moved, it control machine head. |
| It adopts double round blades to cutter. |
| It adopts 2 pieces ABBA mobile screw(Taiwan) to separate control cutter and machine head. |
| It adopts 2 sets Hiwin move the slider and track(Taiwan) to separate control cutter and machine head. |
| It adopts Hugong Signal element, Delixi Electrical components and Zhejiang Xingchen Pneumatic Components. |
| Paper tube clamping adopts automatic chucks. |
| Certification | CE,SGS, Gold Supplier, etc. |
| MOQ | 1 set. (More than 3 sets, offer a special discount) |
| Perfect After-sale System | Technicians can service overseas. |
| Prompt Reply | Within 24 hours. |
| Yearly Production Capacity | More than 100 sets. |
| Packing Details | With flexible wrapping and export standard wooden case. |
| Delivery Time | Within 30 days after receipts of 30% payment, the rest 70% paid before shipping. |
| Terms of Payment | T/T, L/C |
| Delivery Clause | FOB Ningbo/Shanghai Port |
| Packaging Details | High Speeding Razor Paper Sheeter Machine is with flexible wrapping and wooden case. It is included one year guarantee time, whole life technical support, a box of tools, two pieces blade and exporting standard wooden case. |
Packaging & Shipping Packaging Details: Fully Automatic Shaftless Paper Core Cutting Machine is with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Delivery Details: Within 45 days after receipt of 30% payment by T/T. Fully Automatic Shaftless Paper Core Cutting Machine
Company Information
Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.
By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with us to win a mutual benefit future.
Our Customer:
Our Service
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q3. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
FAQ
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
>>
