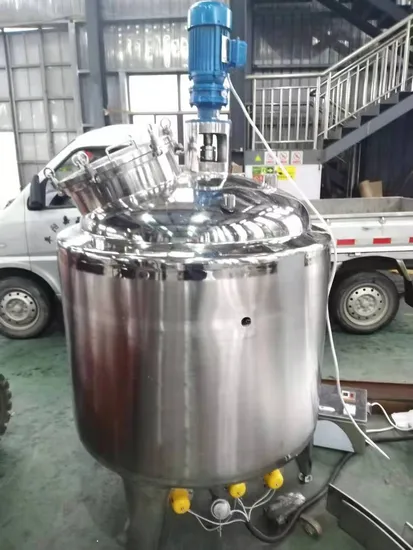

10000L Stainless Steel Mixing Storage Fermentation Mixing Tank

Product Description

10000L Stainless Steel Mixing Storage Fermentation Mixing Tank
Sanitary stainless steel tank, Mixing tank, storage tank, heatig and cooling tank, Mixing Cylinder, stainless steel vessel, ELECTRICAL HEATING TANK
1). SUS316L or SUS304
2). Can heat and mix the liquid, fluid and keep the fluid warm
3). Capaciy: 200L~10000L
4). Application: Food, beverage, pharmaceutical, chemical, etc.
Electric heating fermentation tank
Customized design accepted
Specifications
usage: it is can used as yogurt fermentation tank, pasteurizing tank, holding tank, storage tank,blending tank,mixing tank,and so on.apply to food ,dairy ,juice,beverage.
Usage:
it is can used as storage tank,blending tank,,mixing tank,and so on.apply to food ,dairy ,juice,beverage,medicine,chemcal.and biological engineering etc.

Work Volume	Dimension of tank	Total height	Insulated layer	Diameter of inlet&outlet	Motor Power	Blending speed
(L)	(mmxmm)	(mm)	(mm)	(mm)	(kw)	(r/min)
500	840*1000	2300	60	38	0.75	Rotating 20,35,50, 100,500 Stepless speed reducer or inverter reducer available
600	920*1000	2400	60	38	0.75
700	990*1000	2400	60	38	0.75
800	950*1220	2550	60	38	0.75
900	1010*1220	2700	60	38	0.75
1000	1060*1220	2700	60	51	1.1
2000	1340*1500	2750	60	51	2.2
3000	1410*2000	3500	60	51	4
5000	1910*2000	3850	60	51	5.5
10000	2300*2440	4500	60	51	7.5
15000	2530*3000	5200	60	51	7.5
20000	2640*3660	5800	60	51	7.5

Charcateristic:
1.the inter barrel with outsourcing ,insulation layer is filled heat preservation material structure.
2.material is sanitation stainless steel.
3.structure design is extremely humanization,the maneuverability is strong.
4.the barrel body wall using arc transition section,sanitation without blind angle.
tanks configuration:
1.quick open manhole
2.various shape CIP CLEANER.
3.prevent fly worm sanitation air masks.
4.adjustable triangle feet.
5.removable feeding inlet tube suite.
6.the themometer (according to the custom request)
7.the ladder (according to the custom request)
8.vertical mixer according the requirements of clents to choose blade of framc type
9.prevent eddy platetechincal
parameter:volumebarrel sizetotal heightheat preservation layerinlet&outlet DNmoter powermixing
Storage Tank Yogurt Fermentation Tank Mixing Tank Holding Tank
10000L Stainless Steel Mixing Storage Fermentation Mixing Tank .

---
