US$250.00-350.00
|
100 Pieces
(MOQ)
|
Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Semi Hanging
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Specification
84*51*63 cm
Trademark
everstone/blackridge/mamamiya/elegen
Production Capacity
10000PCS/Month
Product Description
Welcome to Taizhou Oujie Machinery Co., Ltd. - Shopping Mall
Taizhou Oujie Machinery Co., Ltd is a professional manufacturer and exporter for all kinds of gasoline engine, gasoline water pump, Gasoline generator, diesel engines, diesel generator, diesel water pump, power sprayer, car washer and spare parts. We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Sincerely welcome to visit our factory.

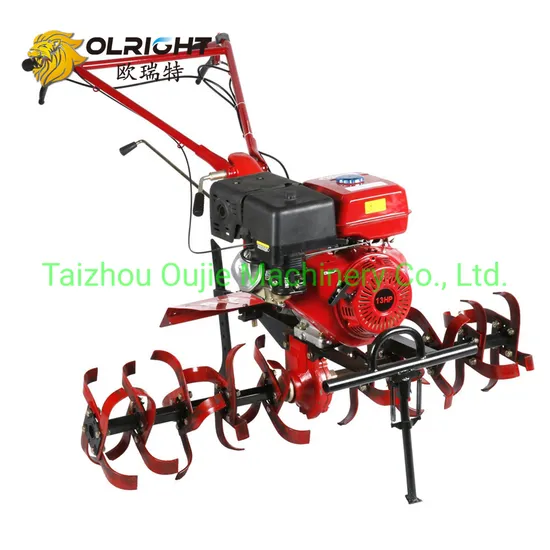

Gasoline and Diesel Power Tiller
1. Gear box drive
2. Stronger powerful.
3. Useing for dry field and water feild
4. As usual attached one set dry land blade
5. Light weight, easy operation
| Model | OJ4.2Q | OJ5.4Q | OJ8.2Q | OJ3.8C | OJ4.0C | OJ6.3C | OJ7.5C |
| Engine Name | Gasoline | Diesel |
| Engine Model | 170F (7HP) | 177 (9HP) | 188F (13HP) | D173F (5HP) | D178FA(E) (7HP) | D186FA(E) (10HP) | D188FA(E) (12HP) |
| Engine Type | 1-cylinder, 4-stroke ,air-cooled | 1-cylinder, 4-stroke ,air-cooled |
| Power | 4.2kw | 5.4kw | 8.2kw | 3.8kw | 4.0kw | 6.3kw | 7.5kw |
| Speed | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min |
| Starting mode | Recoil /Eletric |
| Fule volume | 5.8L | 5.6L | 5.6L | 2.5L | 3.5L | 5.5L | 5.5L |
| Oil capacity | 0.6L | 0.8L | 0.8L | 0.75L | 1.1L | 1.6L | 1.6L |
| Clutsh style | Plate cultch |
| Type of drive | Gear drive |
| Gear shifting | 2 0 1 R |
| Cultivation width | 60-110cm | 70-110 | 70-110 | 60-110cm | 70-110 | 70-110cm | 70-110cm |
| Cultivation depth | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm |
| Task speed | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h |
| Productivity | 0.035-0.08hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h | 0.035-0.08hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h |
| Oil consumption | 12-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 | 12-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 |
| N.W. | 80kg | 105kg | 115kg | 80kg | 115kg | 125kg | 125kg |
| G.W. | 85kg | 110kg | 120kg | 85kg | 120kg | 130kg | 130kg |
| MEAS | 84*51*63 cm | 91*56*84 cm | 91*56*84 cm | 84*51*65 cm | 91*56*84 cm | 91*56*84 cm | 91*56*84 cm |
How to choose tiller and cultivator:
1.Currently on the market Tiller drive chassis has two kinds, one is axes and gear, the other is the belt driven. The former is more suitable for large specific resistance of soil, farming terraces compacted areas.
2.It suggest mountains, hilly areas supporting power users to buy air-cooled diesel engine rotary tillers, because of its small size, small, to facilitate the transfer; supporting transport, it is recommended to choose a differential Tiller
Factory pictures:
Contact Information:
JackWang
Sales Manager
Taizhou Oujie Machinery Co., Ltd.
Floor 4, Building1, No.98 Binrun road, Sanjia Street, Taizhouwan New District, Taizhou City, Zhejiang, China.
