Product Details
Product Description
Product Description
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita.
The interior and exterior of the insulation body can be chosen the popular glass steel material, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 80mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
Today, we will introduce 2021s best seller- mini gasoline refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. are as below.
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

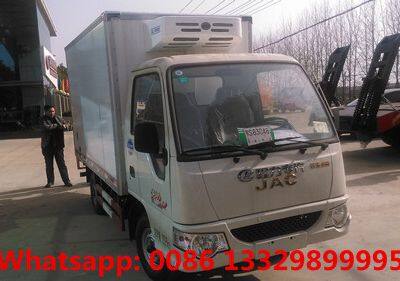

More pictures of JAC brand gasoline refrigerated minivan car is as below.
HOT SALE! JAC brand gasline refrigerated truck for sale
Main technical parameters of JAC brand gasoline refrigerated minivan as below.
Items
| Descriptions
| Specifications and Types
|
General
| Truck Name
| JAC brand gasoline mini refrigerator truck for sale
|
Drive Type
| 4*2 LHD
|
Fact Loading Weight(kg)
| 1tons
|
Total mass(kgs)
| 2755
|
Curb Weight (kg)
| 1880 (Kg)
|
Overall Dimensions (mm)
| 5660X1780X2710 (mm)
|
Engine
| Engine Model
| LJ4A15Q6
|
Engine Brand
| LIUZHOU WULING
|
Fuel Type
| Petroleum
|
Power
| 112hp
|
Emission Standard
| Euro Ⅵ
|
Chassis
| Chassis model
| HFC1030PV4E2B4S
|
Chassis Brand
| Jianghui JAC
|
Tire Specification
| 175/75R16*6
|
Wheelbase (mm)
| 2850mm
|
Axle No.
| 2
|
Steering Wheel
| Left hand drive
|
Gear Box
| 5 speed forward with 1 reverse, manual
|
Air-conditioner
| No
|
Cold Room
| Box inner dimension(mm)
| 3500x1610x1750
|
Box Side
| Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
|
Box Floor
| Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.
|
Doors
| Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Aluminum alloy Door edgings,
Stainless steel material Door locks and accessories
|
Refrigerator Unit
| Refrigeration unit
| Choose high quality China-made or USA CARRIER/THERMO KING vehicle-powered refrigerated unit, the temperature can be adjusted at 15 degree below zero to zero degree. And the cooling unit can be adjusted at the driver cab.
|
Refrigerated temperature
| -15° to 0°
|
Truck model: HFC5030XLCPV4E2B4S
wheelbase: 2850mm
overall dimension (L*W*H): 5660X1780X2710(mm)
refrigerated van box dimension(L*W*H): 3500x1610x1750
Engine model: LJ4A15Q6 112hp gasoline engine
gearbox: MG70 5 speed gearbox
curb mass: 1880KG
front/rear axle: 1.5T/2.1T
steel spring: 3/5
Tire specification: 175/75R16*6
braking：oil cut braking+ABS
Oil tanker: 60L
>>
