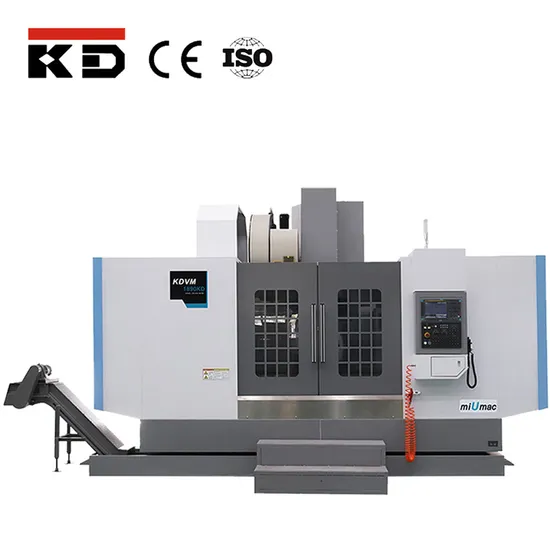

Big Size Vertical Machining Center Kdvm1890L CNC Milling Machine

US$85,000.00-89,000.00 1 Set (MOQ)

Basic Info.

Model NO.
KDVM1890L
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
1800mm
Y Travel
900mm
Z Travel
700mm
Spindle
Bt50
Spindle Speed
6000rpm
Main Motor
18.5/22kw
Transport Package
Wooden Pallets(Ht)
Specification
2000X900mm
Trademark
KD
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523

Product Description


Technical specifications:
MODELS KDVM1890L
TRAVEL
X axis 1800mm
Y axis 900mm
Z axis 700mm
Spindle center to column 1000mm
Spindle end to table 180-880mm
TABLE
Table size 2000×900mm
T-slot(width×number×space) 22mm×5×165mm
Max. table loading 1900kg
SPINDLE
Taper bore of spindle BT50/φ190
Spindle power 18.5/22kw
Spindle speed 6000rpm
FEED
X/Y/Z fast travel speed 20/20/15min
Torque axis motors 38Nm
ATC
Tool number 24
Time (tool-tool) 3s
ACCURACY
Positioning accuracy for X/Y/Z ≤0.024/0.02/0.016mm
Repeatability positioning accuracy for X/Y/Z ≤0.008/0.006/0.005mm
OTHERS
Overall dimension (LxWxH) with auto conveyor 5650x3530x3300mm
Net weight 15000kg
