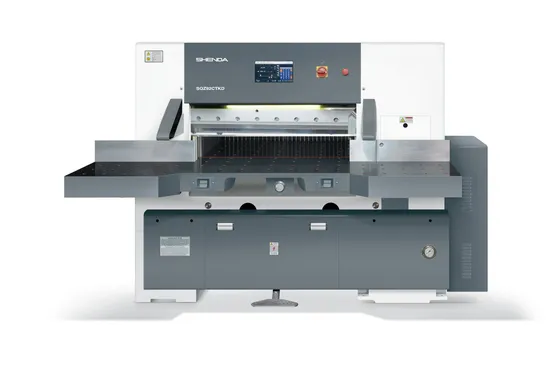

A4 92 Paper Sheeting and Paper Cutting Machine

Product Description

THE SYSTEM OF COMPUTER:
1. The displaying panel use 10.4inch, you can adjust the color by yourself.
2. They have the high quality colors(25600), their storage can reach 170 groups, every group have 250 cut, Its storage time can reach 300,000 hours.
3. The multi-language operating interface, such as Chinese, English, Spanish...
4. It has luminous shortcut key so as to ensure the high stability.

THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB, German MULLER, Japan OMRON.
2. Servo motor is from Japan YASKAWA .
3. Air pump is from ZHEJIANG SENSEN.


THE PAPER PUSHER CONTROLLED SYSTEM:
1. Roller ball lead screw: ABBA
2. Double rail guide way: ABBA


THE HYDRAULIC SYSTEM:
1. Adjustable-pressure single-hydraulic system(paper pressing by the hydraumatic),
2.combined valve from German, ISO approved hydraulic units.

THE SAFETY PROTECTED SYSTEM:
1. Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity protective device.
4. Underlay cutter frame.
5. The closed paper pusher frame.
6. Machine lock, safety bolting, the safety button and light grid.
7.The driving cutting part uses worm.


OTHER EXPLAINTION:
1. The guarantee year is one year expect some consumptive parts, the machine should use correctly.
2. If the buyer need the supplier go for debug or maintain the machine, the buyer should pay the cost of tickets, room and board, traffic.
3. THE DELIVERY TIME: About 30 to 40 days after receipt of the deposit.(If we have no in stock)
4. In every order, the buyer should tell the supplier the voltage and the documents( clear custom )so as to avoid mistake.
6.The buyer should have the equipment to suspend and discharge for the machine.

The Main Specification:

MODEL	QZ-92CT KD
Cutting argument width (mm)	920
Max.cutting height (mm)	110
Max.cutting length (mm)	920
Main Power(kw)	3
Net weight (kg)	2400
Width of machine (side working table included) (mm) Without side working table(mm)	2120
	1980
Total length of working table(mm)	2050
Height of machine (mm)	1560
Fore-length of working table (mm)	690
Height of working table (mm)	900
Pressure (dan/bs)) MIN MAX	150
	3500
Min cutting(mm) without auxiliary panel (mm) With auxiliary panel	25
	90
Cutting Speed (t/m)	45
Voltage(v)	380V,3PHASE / 220,3 PHASE /415V,3PHASE
Overall dimensions (mm)	2320×1420×1850

---
