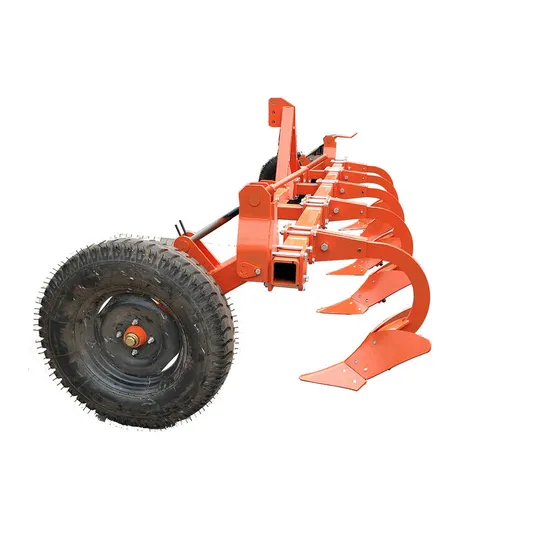

Agriculture Machinery Farm Ridging Plough

US$945.00
1-9 Pieces
US$940.00
10-49 Pieces
US$935.00
50+ Pieces

Basic Info.

Model NO.
3QL-5A
Application Field
Agriculture
Farming Policy
Mountain Machinery
Power Source
Tractor
Operation
Arable Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Orange
Warranty
1year
Product Name
Ridging Plough
Ridging Space
700-900mm
Ridging Height
150-250mm
Working Width
3900mm
Weight
530kg
Transport Package
Iron Frame Net Box
Specification
ECU, CE
Trademark
YCHS
Origin
China
Production Capacity
1000sets/Year

Product Description

3QL series ridger plough is mainly suitable for ridging after the tillage in the field for potato, beans, vegetables etc. it is convenient to adjust the angle, the high ridge and the ridging rows. It can be easily spaced (widened or narrowed) as per the crop requirement. The wings angle can be changed as per requirement.
Advantages: This ridging plough have own rubber tire to move easily The position of mounted hole could be selectable for the ridging height. The plow tip could be adjustable.
Model Unit 3QL-3 3QL-4 3QL-5
Working width Mm 2500 3200 3900
Ridging spacing Mm 700~900
Ridging height Mm 150~250
Matched power Hp 60 80 100
Linkage Three-point suspension II type
