US$5,860.00-6,200.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Precision
Normal Precision
Certification
CE, ISO 9001
Table size (LXW)
1370X320mm
Table travel
720X320X400mm
Max. vertical milling dia.
25mm
Main motor power(V/H)
2.2/2.2KW
Transport Package
Standard Plywood Package
Specification
CE, ISO9001
Production Capacity
100 Sets/Month
Product Description
Product Description

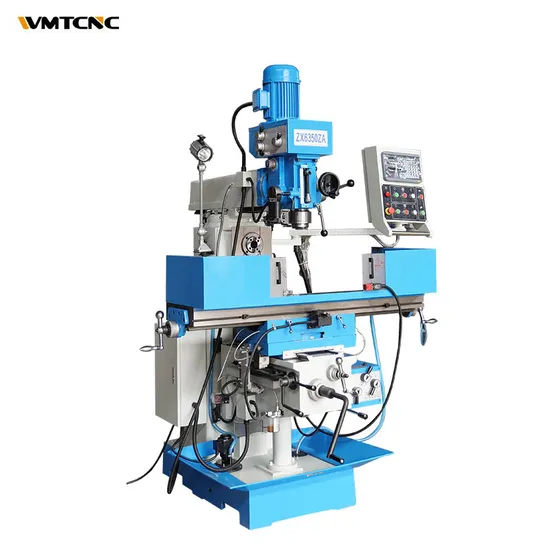

WMT vertical and horizontal milling machine ZX6350ZA mini milling machine main features:
1. Headstock swivels ±45º 2. ZX6350ZA vertical milling spindle auto-feeding, X/Y/Z axis auto-feeding.
| Specification | ZX6350ZA |
| Max.drilling dia. | Copper:Φ50 Casting:Φ30mm |
| Spindle taper | ISO40 |
| Max. vertical milling dia. | 25mm |
| Max. boring dia. | 120mm |
| Distance from spindle to table surface | 60-420mm |
| Spindle speeds(V/H) | V90-2000,H40-1300rpm |
| Spindle travel | 120mm |
| Table size (L×W) | 1370X320 |
| Table travel | 720X320X400mm |
| Main motor power(V/H) | 2.2/2.2KW |
| Packing size | 1750X1600X2350mm |
| N.w/G.w | 1550/1680kg |
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
>>
