Professional Furniture Making Machine 4 Axis Auto Tool Change Spindle Wood CNC Machine with Tool Magazine Wood Machinery

Product Description

Product Description

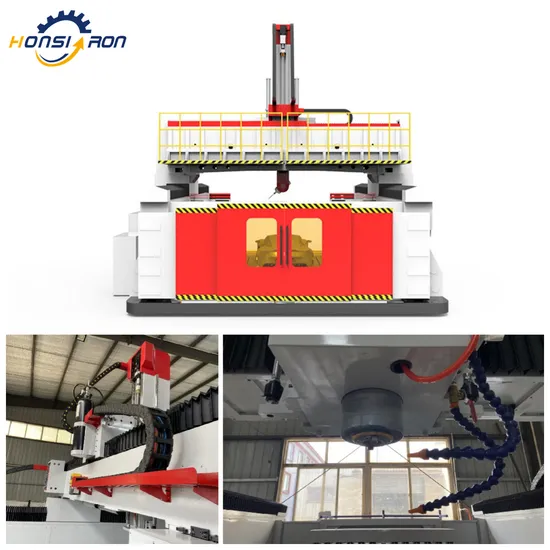

HSR AC series(HSR-3S1325AC/HSR-3S1631AC/HSR-3S2131AC/HSR-3S2142AC) 3 axis ATC CNC router comes equipped with a heavy-duty structure, 9kw auto tool changer spindle, all axes drive-by powerful AC servo motor, matching high-class Hiwin guide rail, make the machines have a high&stable performance and longer lifetime, making it ideal for composite materials, aluminum board and woodworking,whether it is engraving cutting or carving, it can be easily competent.


Product Parameters

SPECIFICATIONS FOR HSR ATC CNC ROUTER
working size	HSR-3S1325AC	1300x2500x300mm
	HSR-3S1631AC	1600X3100X300mm
	HSR-3S2131AC	2100x3100x300mm
	HSR-3S2142AC	2100x4200x300mm
Structure	Heavy steel duty structure with thermal aged and tempering treatment
Guide Rail	Taiwan Hiwin square guide rail
Transmission	XY:Rack and pinion Z: Taiwan ball screw
Reducer	Japan Shimpo planetary reducer
Spindle	9kw ATC air-cooled spindle,24000rpm
Spindle blowing gun	Yes
Spindle cone	ISO 30
Tool magazine	12 pcs linear tool magazine
Controller	Syntec or Weihong Nk105G3
Motor	Japan Yaskawa servo motor
Work table	vacuum + t slot combined
Lubrication	Auto greasing
Cable	Germany Igus Cable
Electric device	France import electric
Command	G code
Software	Artcam

Application
Applicable material:
Composite materials, wood, MDF, HDF, density board, resin, Epoxy tooling board, plastic, PVC, acrylic, crystal, fiberglass, aluminum board, light marble, and other nonmetal materials and light metal materials, etcApplicable industries:
Woodworking and furniture industries: door, kitchen, window, cabinet, sofa, craft wooden door, screen. etc.
Building and decoration industries: such as wave board, backdrop, bar, screen, and so on.
Arts industries: can make art crafts, souvenirs, labels, and number plates.
Advertising industries: such as kinds of letters, characters, marks, sculptures, and so on
Certifications
Packaging & Shipping

Company Profile

1. We SHANDONG HONSIRON MACHINERY PARTS CO., LTD built in 1998, specialized in designing developing, and producing various CNC machine and gantry machining centers. All the products have been approved by ISO9001:2000 and CE, we achieve ERP strategy and have the independent right to export and import.
2. The manufacturing base in Qihe Economic Development Zone of Shandong Province, which with 20000 square meters of modern plant, has over 200 workers and 20 professional technicians, and 15 after-sell services professional staff.
3. More than20 years of machining experience has his own Professional R&D team, more than 20 engineers could design and produce 5-axis CNC machines, RV composite panels processing centers, big mold CNC centers, and other high-end custom CNC equipment.
4. Winning by High quality with good price, to make sure every detail high-quality level, most of the machines metal parts are made by our own. Machining Center imported from America. About 100 odd machinery Equipment including CNC machining center, large-scale digital display boring machine, double housing planer, etc. With a strong manufacturing capacity.

FAQ
1. The first use of this machine, it is easy to operate? How about the training and installation?
---We could send the engineer to your factory for training and installation, and give you the technology support all lifetime.
2. If the machine has any problem after I ordered it, what could I do?
---Free parts send to you during the machine warranty period if the machine has any problem.
---If you need an engineer's support, we can fly to your company also.
3. Payment
---T/T,L/C
4. You are a factory or trading company?
---We are a factory with the trading company, we not only can control the machine's quality by ourselves, but also we can provide better after-sales service by our engineers and technicians, this is our biggest advantage.

---
