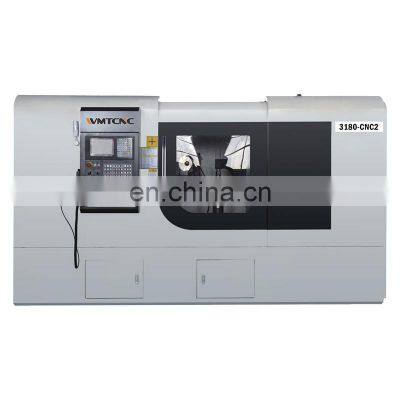

3180-CNC2 Numerical Control Hobbing Machine with Good Accuracy

Product Description

Product Description
Properties and pecularities1. The numerical control system uses Kaneti system, Guangshu system, Siemens.2. This machine tool batch and small batch to produce spur gear and cylindrical gear Helical gear, drum gear, worm gear, sprocket and synchronous belt wheel etcGear machining3. Can be customized according to user's needsType of Machine3180-CNC2Max. Working Diameter800mmMax. Working ModuleM10Max. Working Width300mmMax. Installation Length of Work Piece350mmMin. Number of Teeth Processed8Max. Diameter of Hob180mmLength of Channeling Knife of Hob50mmSpindle Diameter of Hobφ22mm φ27mm φ32mm φ40mmSpindle of Main Shaft of Hob700r/minMax. Rev of Operation Platform8step 40-200r/minZ Axle Quick Movement2000mm/minX Axle Quick Movement2000mm/minDistance Between Core of Hob to Core of Operation Platform50-550mmSwivel Angle of Cutter Frame±45°Total Capacity of Motor About25kwExternal Dimension of Machine(L×W×H）2752×1490×1870mmWeight of Machine Circa5500KG
