Hanbs CNC Lathe of 5- Knives Cutting Tools with Precision and Rigidity Productivity

Product Description

W15-Hanbs CNC Lathe of 5- knives Cutting Tools with Precision and Rigidity Productivity
Product Description

Product Description
High Precision and Consistency
Error Reduction: The design of simultaneous multi-tool operation reduces the need to move the workpiece between different machining processes, decreasing positioning errors and enhancing machining precision. Stable Machining Process: With multiple tools working simultaneously, the machining process is more stable, resulting in better surface quality and dimensional consistency. Flexibility and Adaptability
Quick Task Switching: The design of a five-tool simultaneous lathe allows for rapid switching between machining tasks, adapting to various part processing needs. Versatility: By changing and adjusting tools, this lathe can machine different types and shapes of parts, providing high flexibility.
Product Photoes
spindle type 12 on the back, machining with spindle end drilling
1kw servo axis on the back for powerful drilling
4 ER11 spindle end drills on the back side

Product Information

control system	HANBS self-innovate (yn 1.0 versions)
Servo axis number	Standard 12 axis
Programming method	5-channels G code programming, each axis can be programmed separately
The number of knives	Group 5
Maximum machining diameter	Φ15mm Φ20mm
Maximum machining length(50mm in guide mode)	The walking knife mode is 50mm
Maximum axial bore diameter (When the back shaft is 12mm and the handle is 10mm)	Φ6mm
Drilling arm handle diameter	∅5(Three)∅6(Two)
Attack capability (spindle reversal mode)	M6 Copper
Dental tapping ability (doraxial delivery)	M5 Copper
Car thread function	Yes
Multi-knife synchronous processing function	Yes
Radial max bore diameter	Φ7mm
Radial max bore tapping size	M5
Maximum clamping diameter of the back side spindle	∅12mm
Maximum bore diameter of the back-side spindle	∅6mm
Maximum tapping diameter of the back-side spindle	M6
Spindle power	2KW(With the function of score)
Backside platform axle power	1.0KW
Maximum spindle speed(For short use only)6000rpm	6000rpm
Back maximum speed (for short use only)	6000rpm
Maximum removal length of piece	50mm
Side power tool unit (optional)	2
End face power tool unit (optional)	1
Row knife ( 8 * 120 * 3))	3
Standard maximum number of tool installed (5 knives + 5 drill / boring)	10
High maximum number of tool installed (5 + 5 drilling / boring + 1 back strong drill)	11
Knife size	8*8
Z1.2.3.4.5 axial stroke	50mm
X1.2.3.4.5 axial stroke	30mm
Backshaft itinerary	150mm
X1.2.3.4.5 axial power	400W
Z1.2.3.4.5 axial power	400W
Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed	30m/min
X1, X2, X3, X4, X5 axis fast forward speed	30m/min
Center height of spindle	1010mm
High version input power	7.6KW
weight	1800Kg
Fuel tank storage	50L

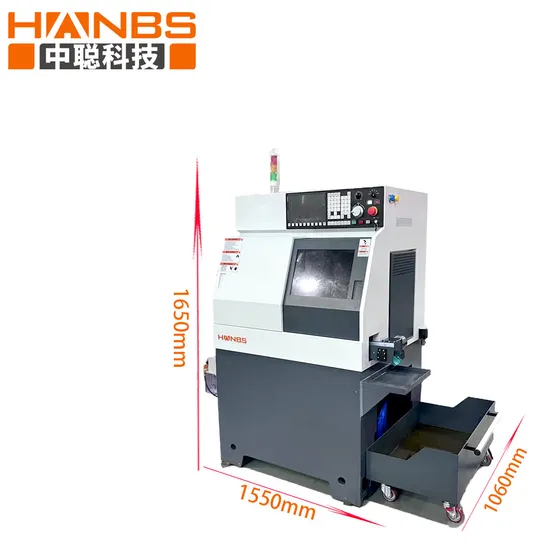

size	1550*1060*1650mm

Installing
Sample Display
Factory

Certifications
Shipping and Packing

Q&A 1. Application Range Q: What types of parts are suitable for a five-tool simultaneous CNC lathe? A: This equipment is suitable for processing parts with complex shapes and high precision requirements, covering multiple industries such as automotive components, aerospace, and medical devices. 2. Operator Training Q: How long does it take to train operators? A: Basic operation training usually takes 1-2 weeks, and we also offer ongoing technical support. 3. Equipment Reliability Q: How reliable is the five-tool simultaneous CNC lathe? A: Our equipment is rigorously tested and highly reliable. It has a low failure rate and comes with comprehensive after-sales service support. 4. After-Sales Service Q: What after-sales services do you offer? A: We provide equipment installation, operator training, regular maintenance, and emergency repair services. Our technical support team is always ready to assist you. 5. Technical Specifications Q: What are the technical specifications of this CNC lathe? A: Technical specifications include machining precision, maximum workpiece size, etc. Please refer to the product manual or contact our technical support team for details. 6. Flexibility and Scalability Q: Can the equipment be upgraded or expanded to meet future needs? A: Yes, the equipment is highly flexible and scalable, and can be upgraded and configured according to your needs. 7. Production Process Optimization Q: How does the five-tool design optimize the existing production process? A: The five-tool design reduces processing steps, increases machining precision and efficiency, thereby optimizing the production process and lowering production costs. 8. Tool Wear Q: Does simultaneous multi-tool operation increase tool wear? A: Simultaneous multi-tool operation distributes the load among the tools, which can actually reduce wear on individual tools and extend their lifespan. 9. Material Processing Capability Q: Can the five-tool simultaneous CNC lathe process specific materials? A: Our equipment can process a variety of materials, including metals, plastics, and composites. For specific processing capabilities, please refer to the product manual or consult technical support. If you have any other questions, please feel free to contact our sales or technical support team.

---
