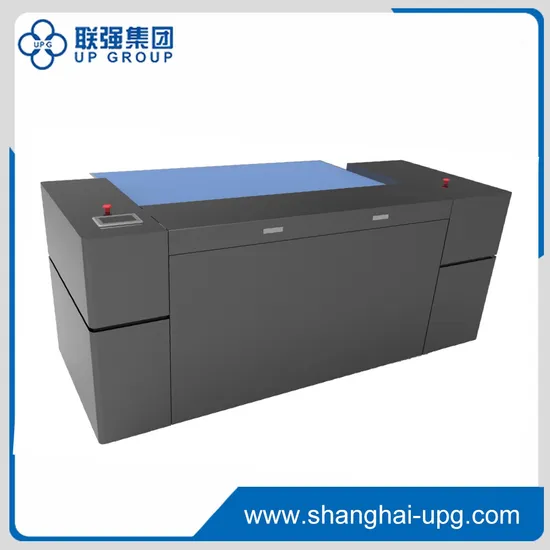

LQ-6048 F Flexo CTP Platesetter

Product Description

Product Description Flexo CTP Platesetter
Features
1.Special laser diodes with high laser power (wavelength: 830nm) 2.Liner motor scanning system (stable and reliable)
3.Fully automatic dynamic pressure balancing adsorption system (convenient plate loading)
4.Dual network interface:
Interface 1: For PC data transfer
Interface 2: For remote control (For information exchange of two screens, remote after service and system upgrading)
5.Automatic adjusting for tolerance (automatic adjusting for the tolerance between plates and drum of printing machine, don’t need to adjust it on RIP software)
Product Parameters Technical parameters:

Model	LQ6048F-16	LQ6048F-32	LQ6048F-48
Laser system	16	32	48
Productivity	1.4sqm/h	2.8sqm/h	4.2sqm/h
Max.plate size	1524*1220mm
Plate thickness	1.14-3.94mm
Output media	Flexographic water-washable letterpress plates Flexographic water-washable plates Flexographic solvent-washable plates
Application	Label printing,Trade mark,Packaging
Resolution	4000dpi
Loading method	Manual loading
Interface	Gigabit Ethernet
External dimension(mm)	L*W*H=2700mm*1430mm*1200mm, 2000kg
Power supply	AC 220V 50-60HZ 5KW(Single phase)
Environment	Temperature 18-30ºC,Humidity 40-70% non condensing

Company Profile
Superiority
Our Customers
Exhibitions
Our Services Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.

---
