Basic Info.
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Immersible Pump
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CE
Application Field
Agriculture, Forestry
Nozzle Diameter
14mm-30mm
Flow Rate
15.5m3/H-101.1m3/H
Interface Mode
Flange Interface
Jet Elevation
20-45 Adjustable
Transport Package
Export Carton
Specification
88.5 * 20.5 * 32cm
Production Capacity
One Hundred Thousand
Product Description

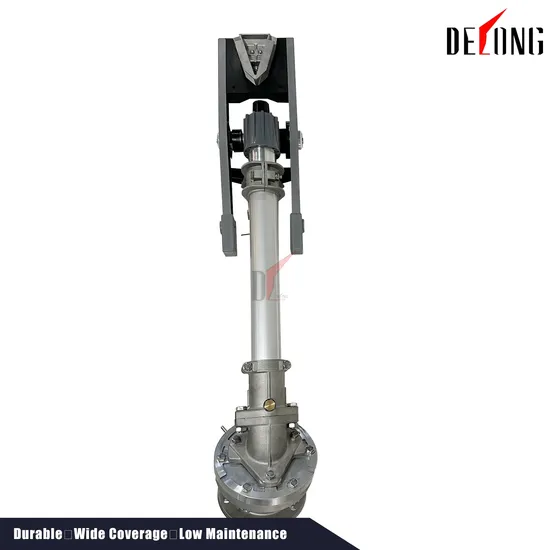

DL50PYC Vertical rocker arm (extended) irrigation spray gun adopts the form of double rocker arm, the vertical rocker arm is equipped with a bidirectional guide plate, through the water flow to the bidirectional guide plate in different directions, to achieve the positive and negative rotation, so as to achieve the positive and reverse can be normal spray continuous spraying mode. The nozzle has a long injection distance and can adjust the rotation angle of the nozzle 0°-360°, and completely automatically and smoothly rotate during the injection process without manual intervention. The rotation mechanism of the 50 PYC vertical swing arm irrigation spray gun is a unique plane bearing form, and the brake friction pair is used to control the rotation speed of the spray gun smoothly. In the process of no lubrication during the use, so that 50 PYC vertical rocker arm spray gun to meet the requirements of flexible rotation, greatly prolong the service life, and 50 PYC vertical rocker arm irrigation spray gun can also achieve its excellent spray atomization effect under low water pressure, thus greatly reducing the energy cost. The products are mainly used for agricultural irrigation, industrial and agricultural drainage, grassland irrigation, and landscaping.
>>
